Length | 3.18 |
Hose Inside Diameter (in) | .375 |
Thread Size | 3/4-16 |
Hose Inside Diameter (mm) | 9.5 |
Drop (mm) - T | 29 |
Drop (in) - T | 1.14 |
Nut Hex (mm) - H2 | 24 |
Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |

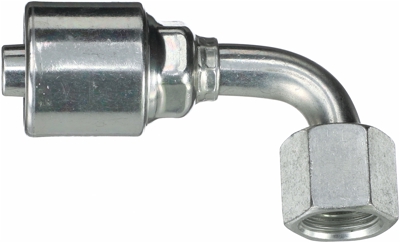

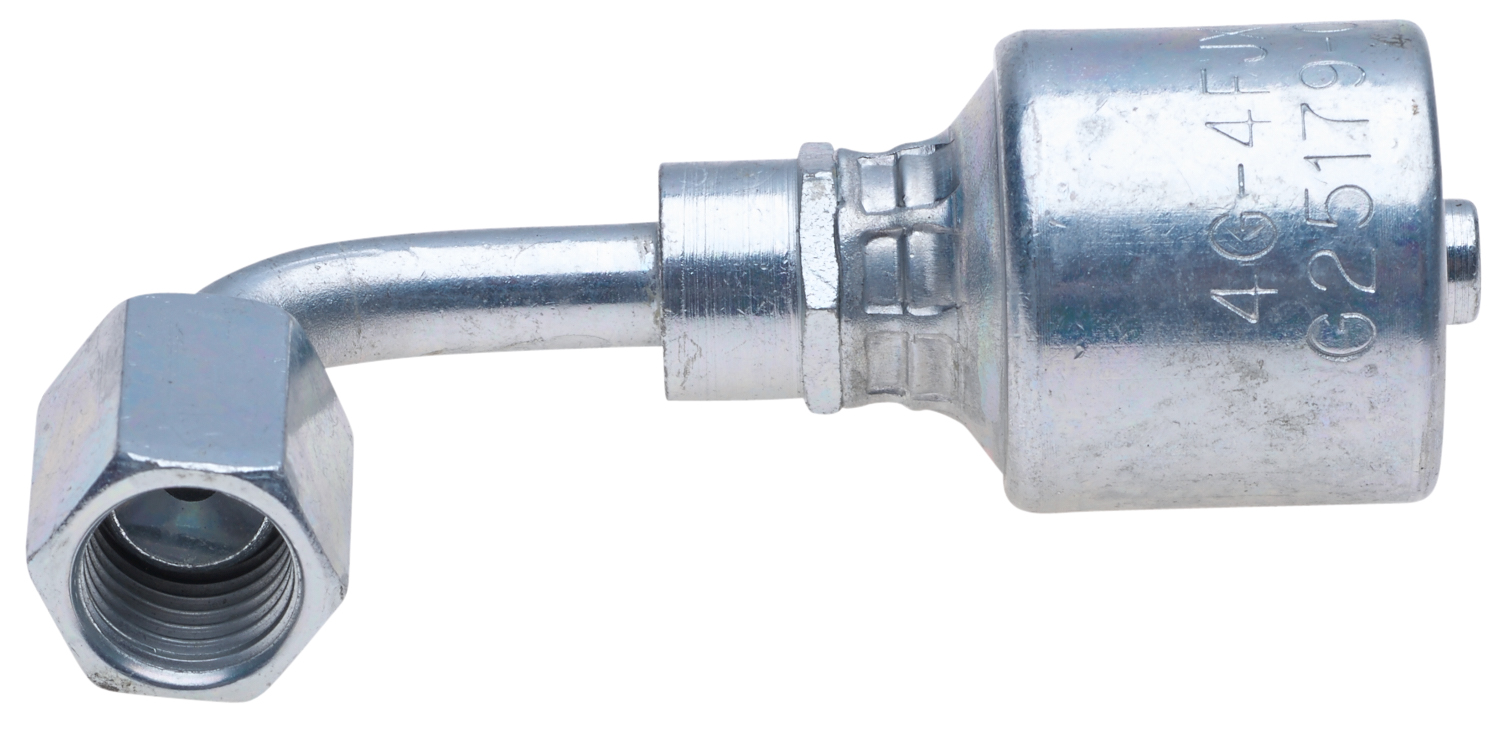

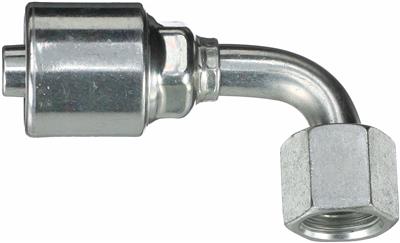

Coupling Description | MegaCrimp Female JIC 37 Flare Swivel - 90 Bent Tube |
Industrial Description | 6G-8FJX90S |
Cut Off (mm) - C | 52.8 |
Cut Off (in) - C | 2.08 |
Heavy Duty Supplier | Yes |
Nose Seat | Standard |
Seal Type | Mated Angle |
Mating Angle | 37 |
Bent Tube Angle | 90 |
Swivel | Yes |
Gender | Female |
Gates MegaCrimp couplings are designed for use with Gates wire braid hydraulic hose to create a robust, leak-free assembly. The pre-assembled coupling is designed with a patented C insert attached to the ferrule. This design ensures that crimping forces are evenly distributed to form a concentric, leak-free seal.
One MegaCrimp coupling size can accommodate various one and two-wire braid hydraulic hoses of different constructions and wall thicknesses, simplifying inventory requirements, helping to reduce costs and simplifying coupling selection.
