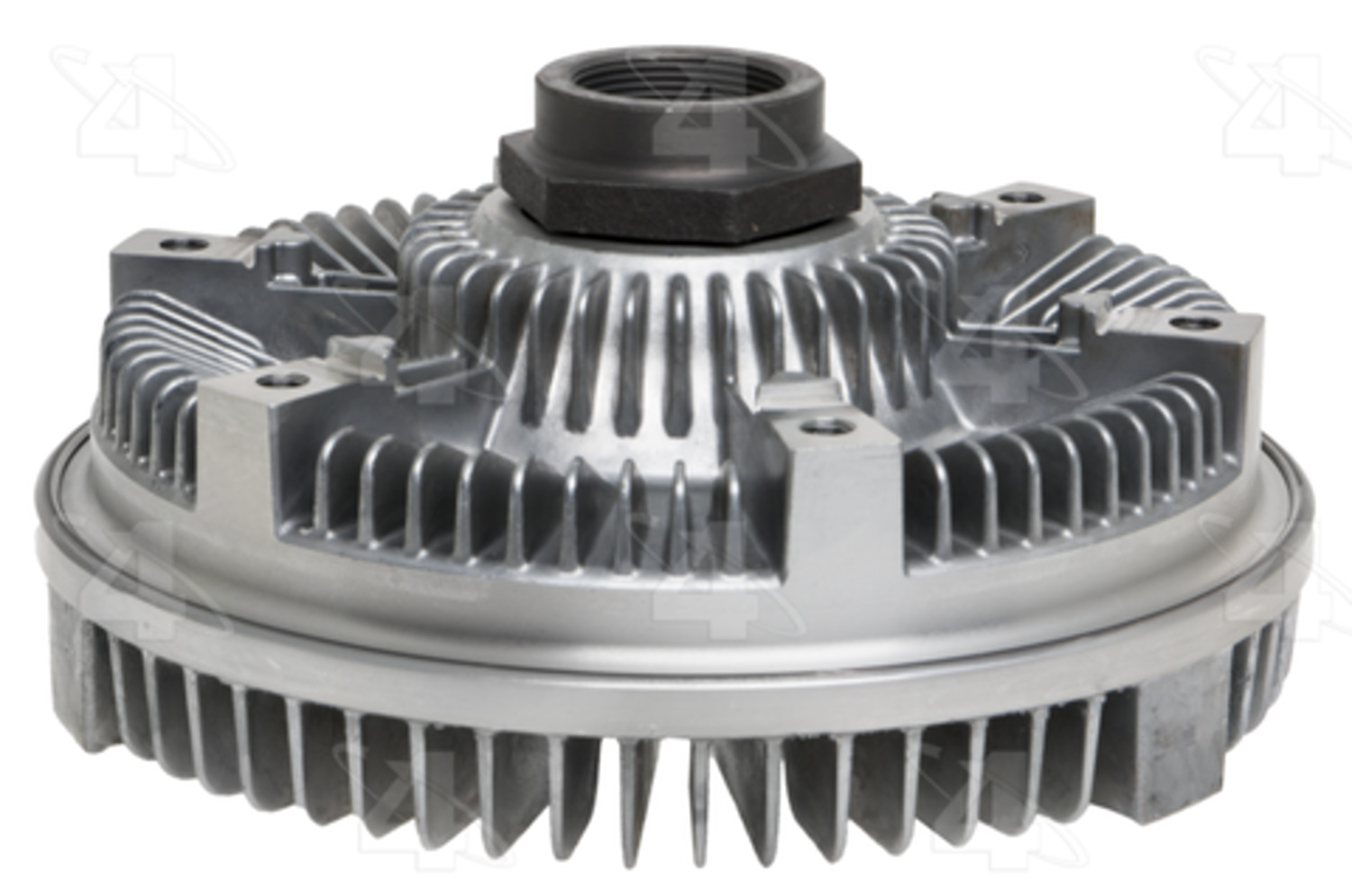

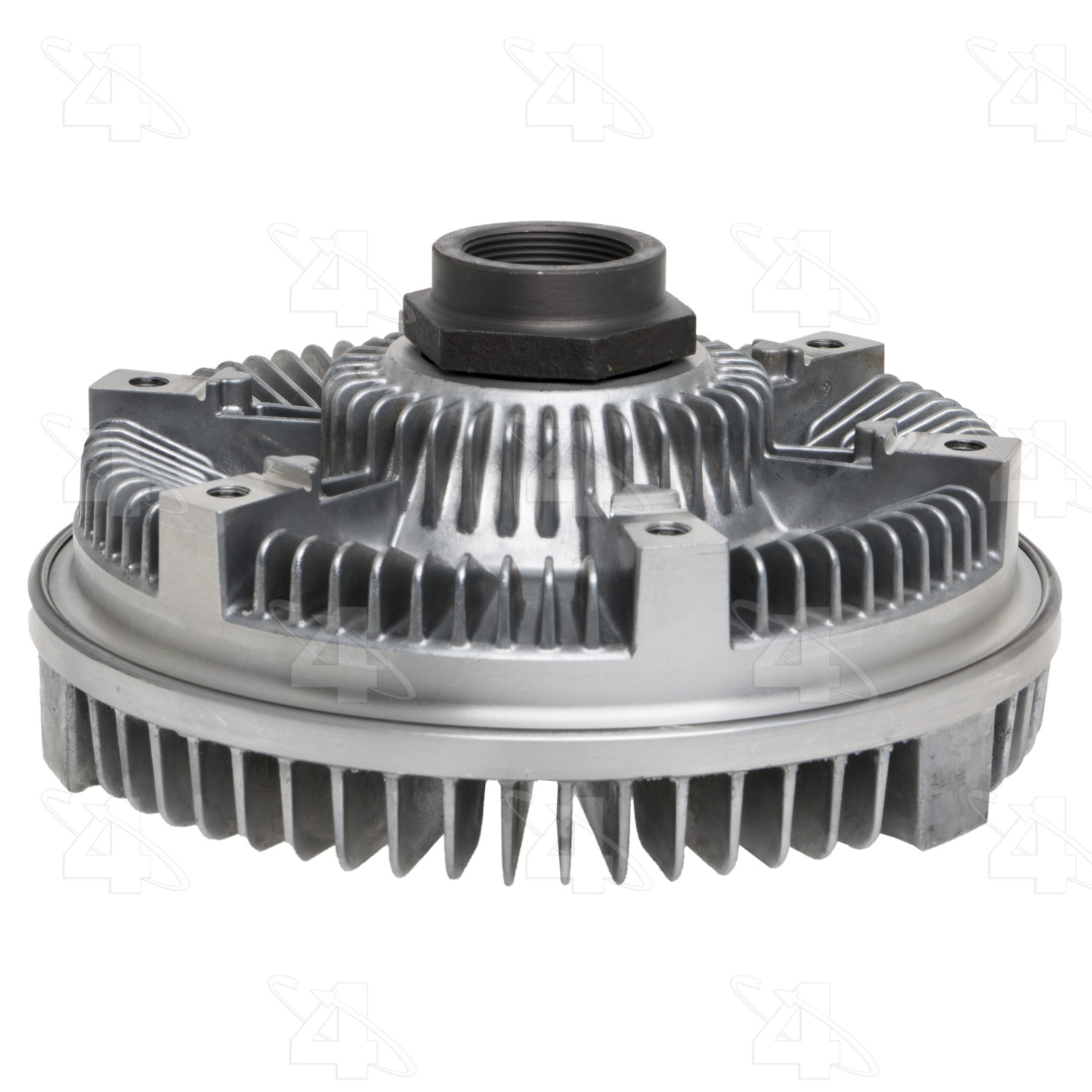

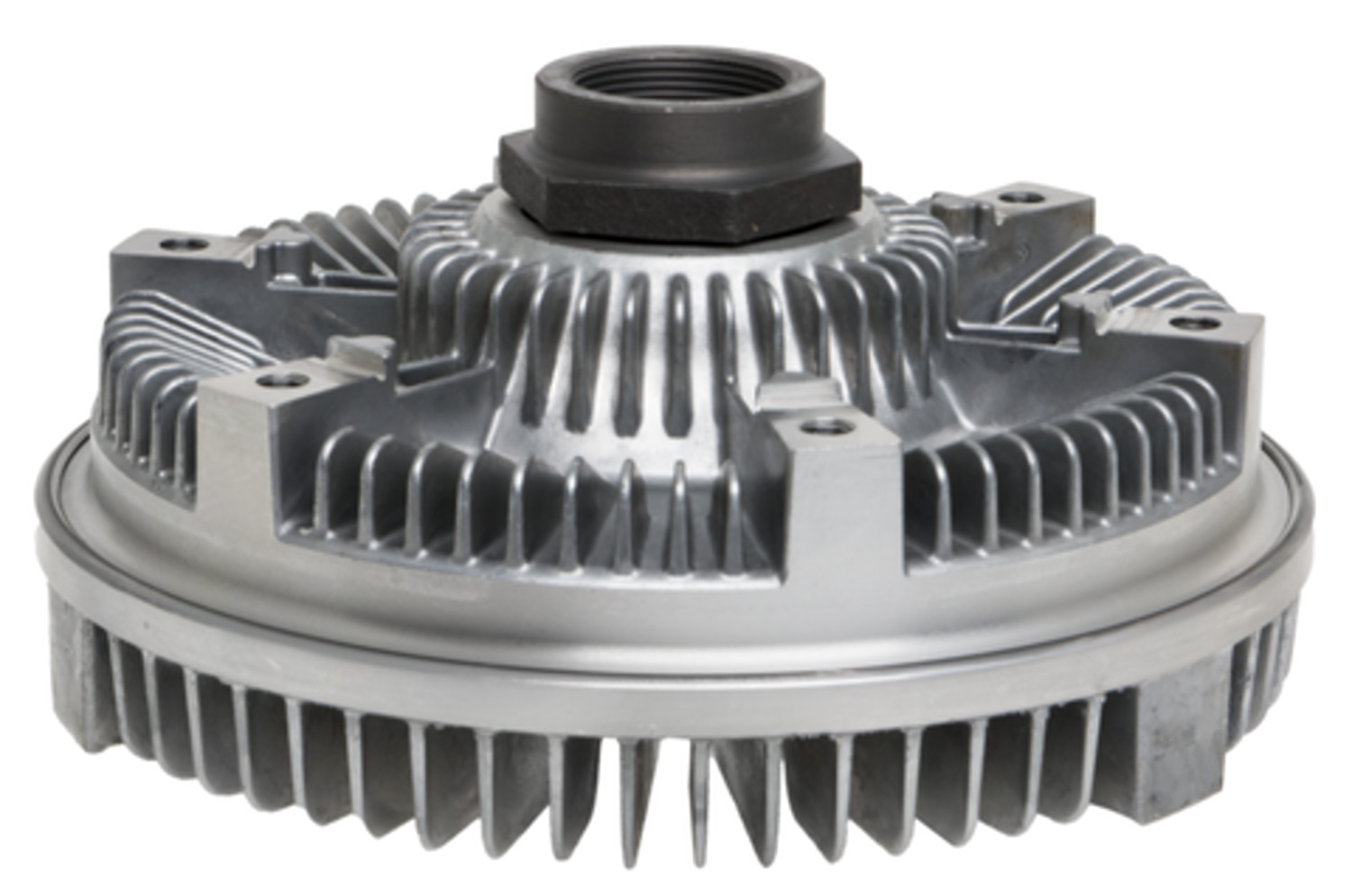

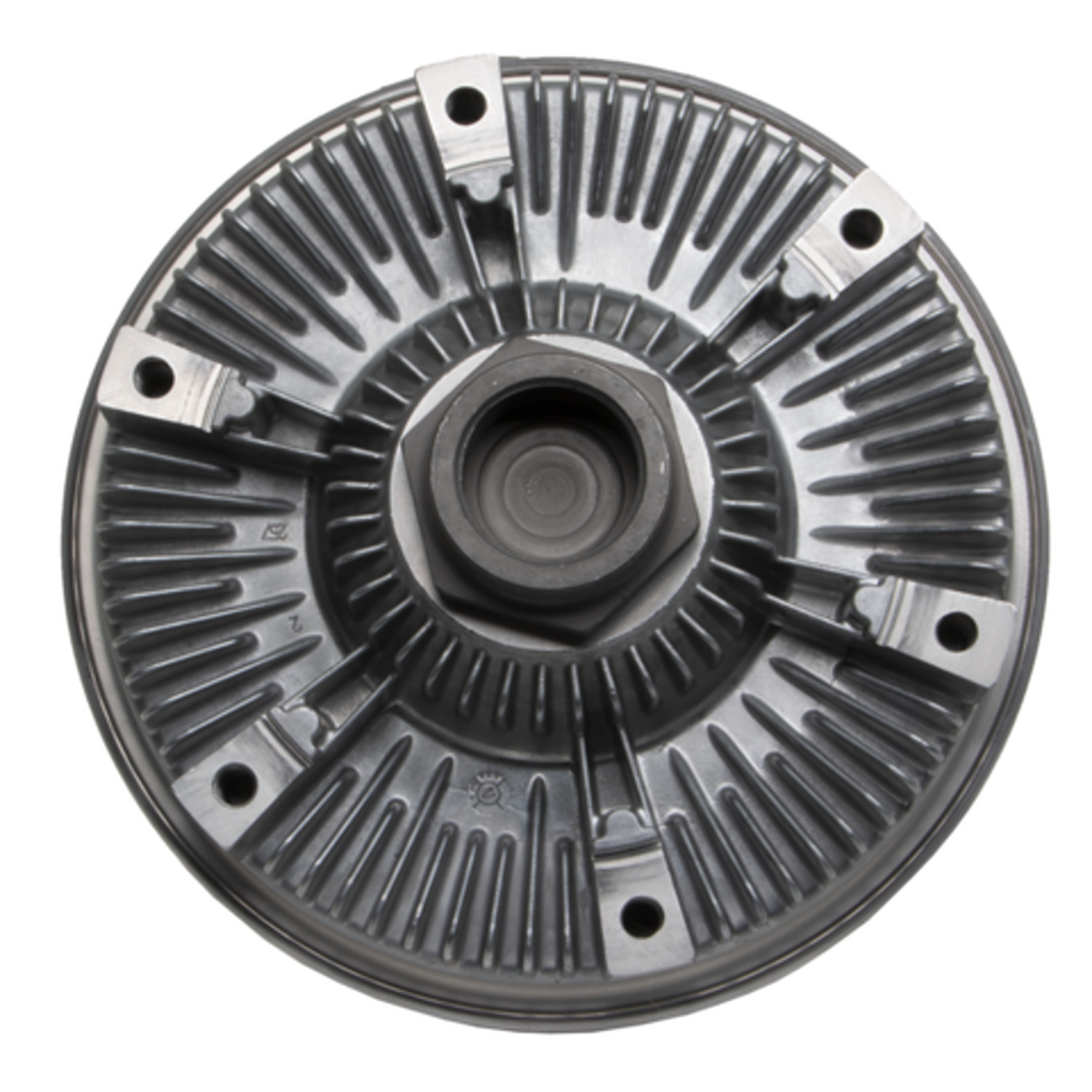

Reverse rotation severe duty thermal fan clutch
Part # 2835 | Line Code: HFC
brandNameImage
brandNameImage

$156.99

help
Not Fitted / Universal


Product Details
expand_less
Terminal Type N/A
Mounting Hole Quantity 6
Clutch Maximum Diameter 7.4
Distance From Clutch To Mounting Flange 1.22
Rotation REV
Mounting Type HEX
Color Raw Aluminum in Color
Use Type Severe
Bolt Hole Quantity 6
Material Aluminum
California Proposition 65 WARNING: This product contains a chemical known to the State of California to cause cancer.
Fan Mount Dia. IN 5
Clutch Type D - Severe Duty & Truck Fan Drive
O.E. Replacement? Yes
New or Reman New
Meets / Exceeds OEM? Yes
SDS Required No (135233618)
Performance Rated? Yes
Bolt Quantity 6
Mounting Hardware? Not Included
Type Thermal
Bolt Thread 5/16-18 Hole
Duty Rating Severe
Style Severe Duty
Drawing Type D
Description Fan Clutches
Electronic Clutch? Non Electronic
Overall Dia. MM 188
Fan Mount Dia. MM 126.9
Fan Bolt Circle MM 152.4
Pilot Depth MM 17
Overall Height MM 90.1
Fan Mount Height MM 31
Pilot Dia. IN 1 1/4-18
Pilot Depth IN 0.67
Warranty 1 year/12,000 miles
Dia. IN 7.4
Mount Dia. MM 48
Mount Dia. IN 1.88
Fan Bolt Circle IN 6
Overall Height IN 3.55

Features & Benefits
expand_more
* Designed, tested, and built by application~ * OE performance, fit, and appearance~ * Precision machined~ * Out of box installation~

Application Summary
expand_more

Ford E250 Van (97-95); E350 SERIES VAN (97-95); F150 (97); F250 (97-94); F350 (97-94) >> Ford HD E SUPER DUTY (97-96); F-SuperDuty (97-93); F59 (97-94)
