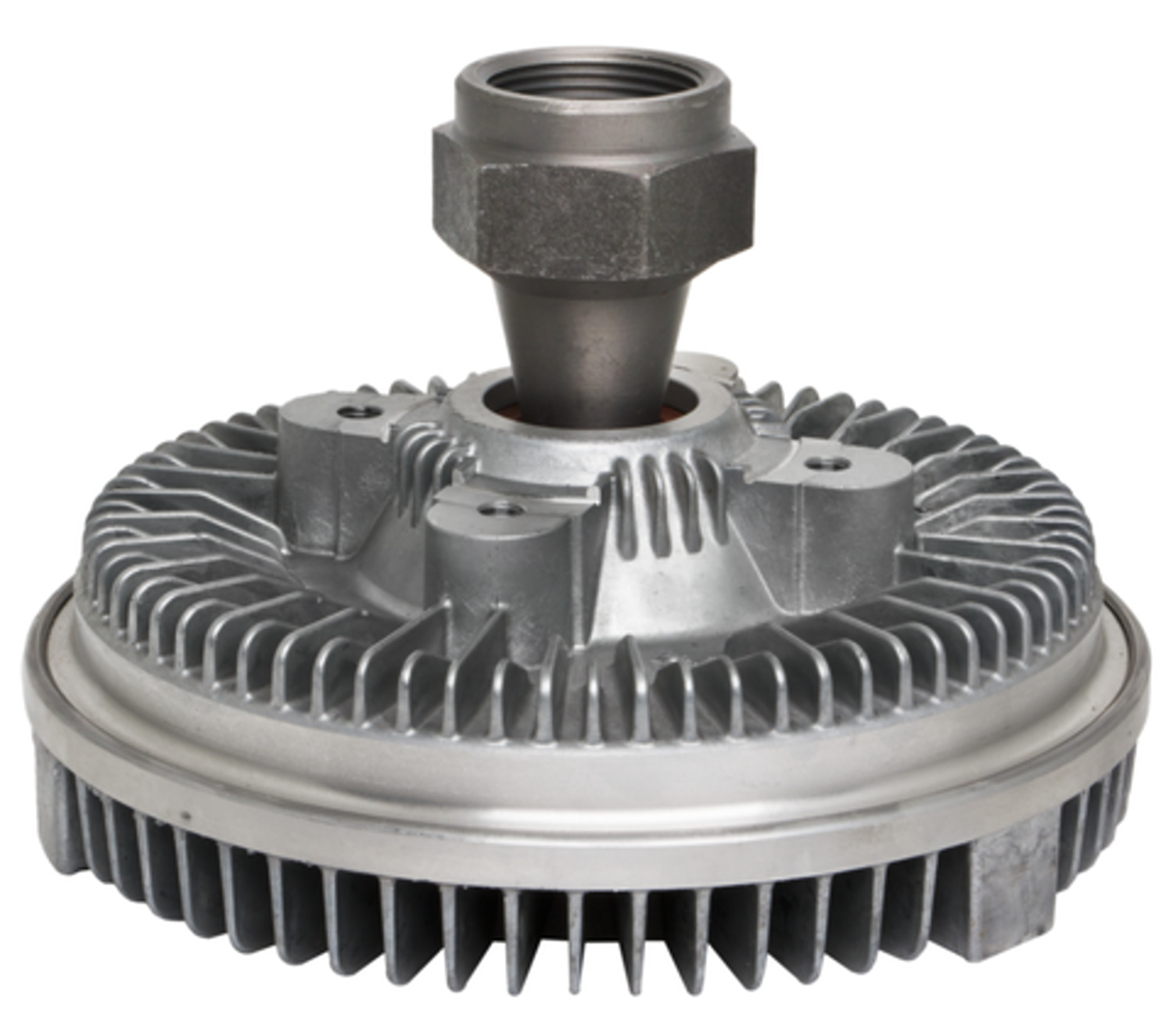

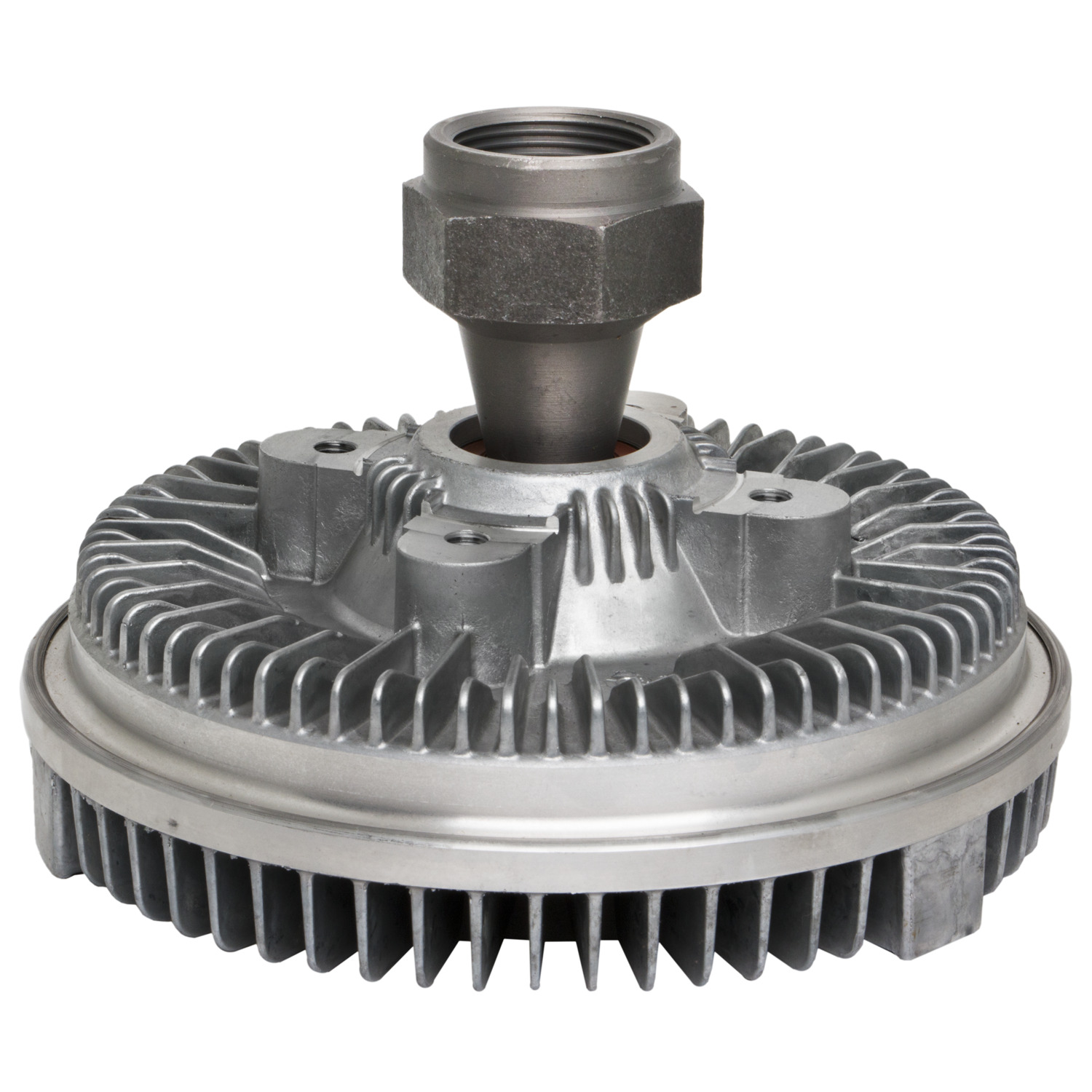

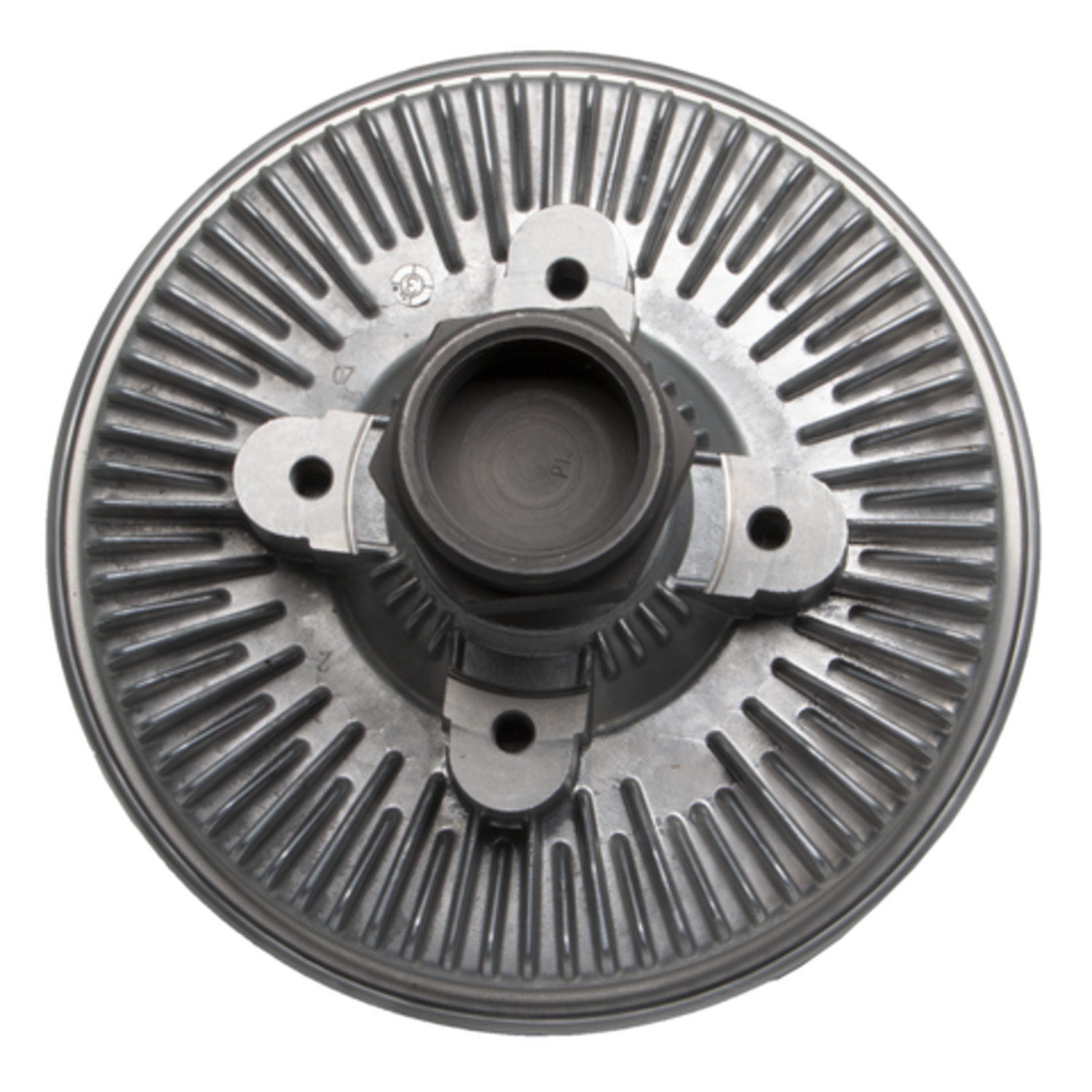

Reverse rotation severe duty thermal fan clutch
Part # 2836 | Line Code: HFC


Not Fitted / Universal

Product Details
Terminal Type N/A
Distance From Clutch To Mounting Flange 2.42
Clutch Maximum Diameter 7.4
Rotation REV
Mounting Type HEX
Mounting Hole Quantity 4
Color Raw Aluminum in Color
Use Type Severe
Bolt Hole Quantity 4
Material Aluminum
California Proposition 65 WARNING: This product contains a chemical known to the State of California to cause cancer.
Fan Bolt Circle IN 3.25
Clutch Type D - Severe Duty & Truck Fan Drive
Mount Dia. IN 1.86
O.E. Replacement? Yes
New or Reman New
Meets / Exceeds OEM? Yes
SDS Required No (135233618)
Performance Rated? Yes
Mounting Hardware? Not Included
Type Thermal
Bolt Thread 5/16-18 Hole
Duty Rating Severe
Fan Mount Dia. MM 66.6
Style Severe Duty
Drawing Type D
Bolt Quantity 4
Fan Bolt Circle MM 82.6
Fan Mount Dia. IN 2.62
Description Fan Clutches
Electronic Clutch? Non Electronic
Overall Dia. MM 188
Pilot Depth MM 20.1
Overall Height MM 125.4
Fan Mount Height MM 61.5
Pilot Depth IN 0.78
Warranty 1 year/12,000 miles
Dia. IN 7.4
Pilot Dia. MM 36
Pilot Dia. IN 1.42
Mount Dia. MM 47
Overall Dia. IN 7.4
Overall Height IN 4.94

Features & Benefits
Our products are engineered and tested to take the heat so your vehicle won't. Backed by over 45 years of automotive cooling experience, fix it once and fix it right with Hayden.

Application Summary

Ford E250 Van (04-97); E350 SERIES VAN (14-97); Excursion (05-00); F150 (00-99); F250 (07-99); F350 (07-99) >> Ford HD E SUPER DUTY (99-97); E450 SERIES VAN (14-99); E550 SERIES VAN (03-02); F450 SERIES (07-99); F53 (07-99); F550 SERIES (07
