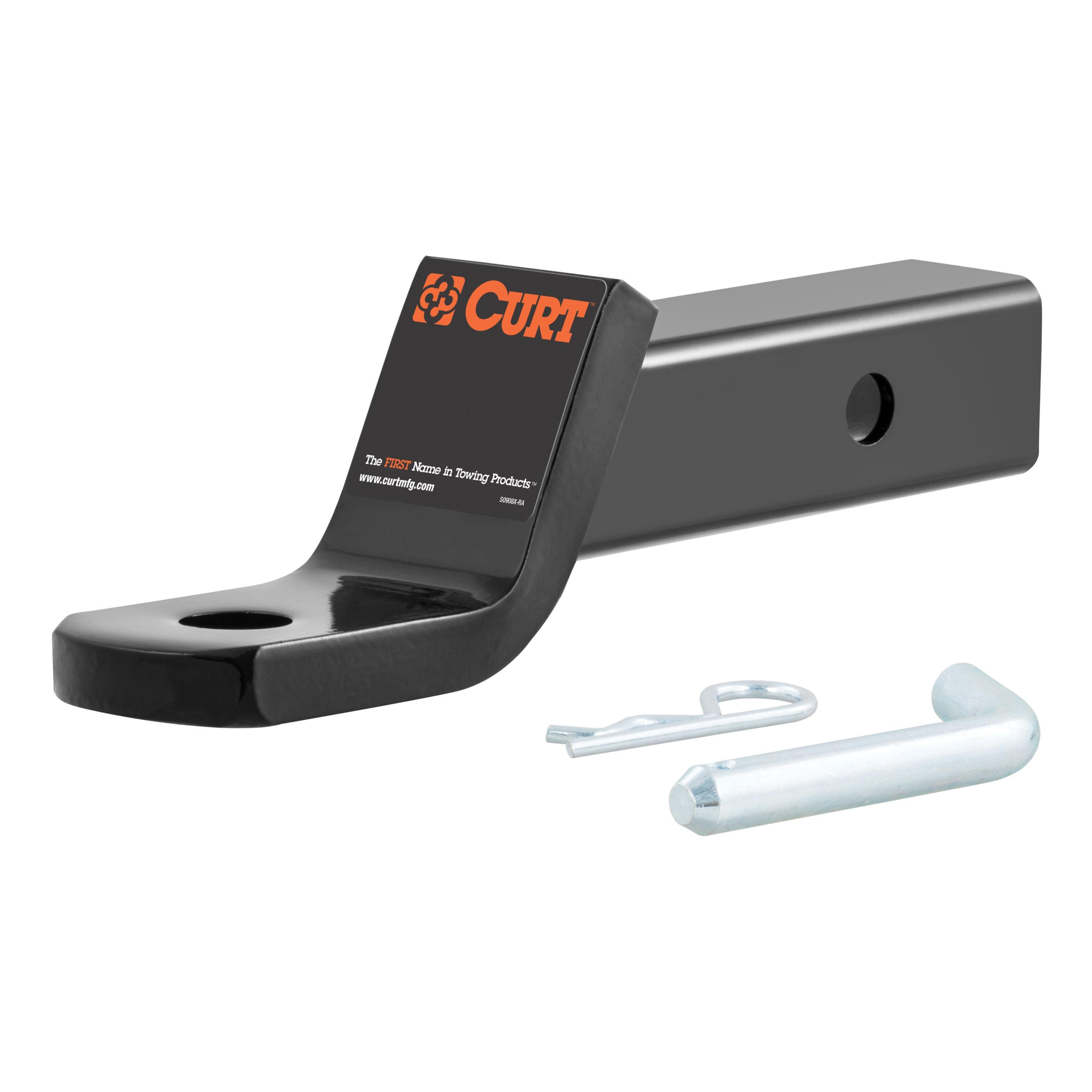

Class 3 Ball Mount with Pin (2" Shank, 7,500 lbs., 2" Drop, 7-1/2" Long, in Box)
Part # 45032 | Line Code: CUR
brandNameImage
brandNameImage

$26.99
$26.99
error
Not Fitted

Product Details
expand_less
Sales Family Code - XA ACCES
Sales Family Description - XA ACCESSORIES
Sales Group Description - XA BALL MOUNT
Master Case Qty - XA 1
Gross Trailer Weight (GTW) 7,500 LB
Pallet Layer of Cases - XA 8
Tongue Weight (TW) 750 LB
Pallet Cases Per Layer - XA 36
Pallet Total Height Inches - XA 28.000
Pallet Case Per Layer - XA 36
Truckload Pallets Qty - XA 17
Master Case Weight Lbs - XA 8.000
Pallet Case Per - XA 288
Pallet Cases Per - XA 288
Master Case Width Inches - XA 3.875
Pallet Qty - XA 324.000
Pallet Total Weight Per - XA 2344.000
Truckload Cases Qty - XA 4896
Truckload Units Qty - XA 4896
Truckload Weight - XA 42296
Master Case Height Inches - XA 2.875
Master Case Length Inches - XA 12.125
Finish - XA GLOSS BLACK POWDER COAT
Warranty Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Receiver Tube Size 2
Parcel Allowed - XA Yes
Rate Class - XA 70.0
Item Length - XA 0.000
Product Weight - XA 0.000
Item Height - XA 0.000
Class ID 0
Item Width - XA 0.000
Box Width in Inches - XA 0
Box Height in Inches - XA 0
Box Length in Inches - XA 0
Retail Height - XA 3.000
Item Class - XA OMF
Retail Length - XA 14.000
Shipping Weight - XA 8.000
Tongue Weight(TW) 750 LB
Gross Trailer Weight(GTW) 7,500 LB
Retail Width - XA 5.000
Drop 2 IN
Rise 3/4 IN
Title Class 3 Ball Mount with Pin (2" Shank, 7,500 lbs., 2" Drop, 7-1/2" Long, in Box)
Heavy Duty Supplier Yes
Container Cases Qty - XA 0
Container Pallet Qty - XA 0
Container Unit Qty - XA 0
Container Volume Cubic Feet - XA 0.00000
Container Volume Cubic Meter - XA 0.00000
Container Weight KG - XA 0
Container Weight Lbs - XA 0
Master Case Inner Pack Qty - XA 0
Master Case ITF14 0
Master Case ITF14 - XA 0
Master Case Volume Cubic Feet - XA 0.00000
Mount Type Description - XA Blank
Side Application Type Description - XA Blank
Tariff 301 - XA No
Truckload Volume Cubic Feet - XA 0.00000
Prop 65 Label Text - XA Blanks
Prop 65 Material - XA Unknown
Prop 65 Reason - XA Unknown
Prop 65 Warning Label Type - XA Unknown
Prop 65 Warning Y/N - XA NO
Material - XA Carbon Steel
Part Terminology Trailer Hitch Ball Mount

Features & Benefits
expand_more
CURT class 3, or standard-duty, ball mounts are a step up from classes 1 and 2. They feature a 2\" x 2\" shank and have a higher weight capacity for towing heavy-duty trailers, including utility trailers, boat trailers, campers, single-horse livestock trailers and most recreational vehicle trailers. With class 3 trailer hitches being the most common type of trailer hitch for pickup trucks and SUVs, the class 3 ball mount, by association, is an excellent complement to this trailer hitch and these larger vehicles (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc).This particular class 3 ball mount has a gross trailer weight capacity of 7,500 lbs. and a tongue weight capacity of 750 lbs. It features a length of 8-1/4\", a drop of 2\" and a possible rise of 3/4\". It also comes with a pin and clip for immediate installation. Class 3 ball mounts are CNC-formed and robotically welded to ensure unwavering precision and dependable strength in each and every unit. We mechanically descale each one to provide a smooth surface for a long-lasting finish. This class 3 ball mount comes with a durable gloss black powder coat finish to protect against corrosion, scratches, UV damage and more to give it the thick skin it needs to face the road ahead.
