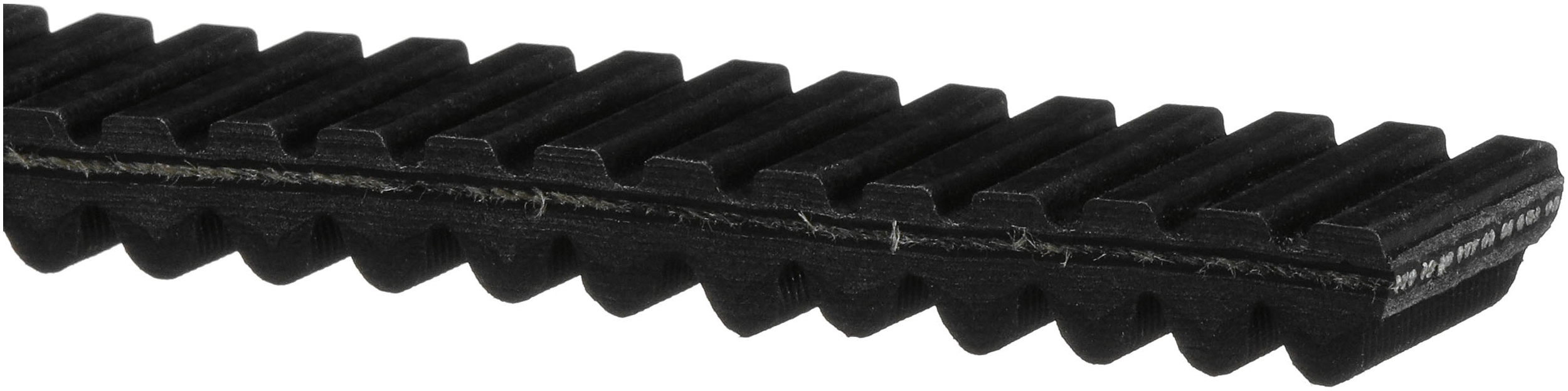

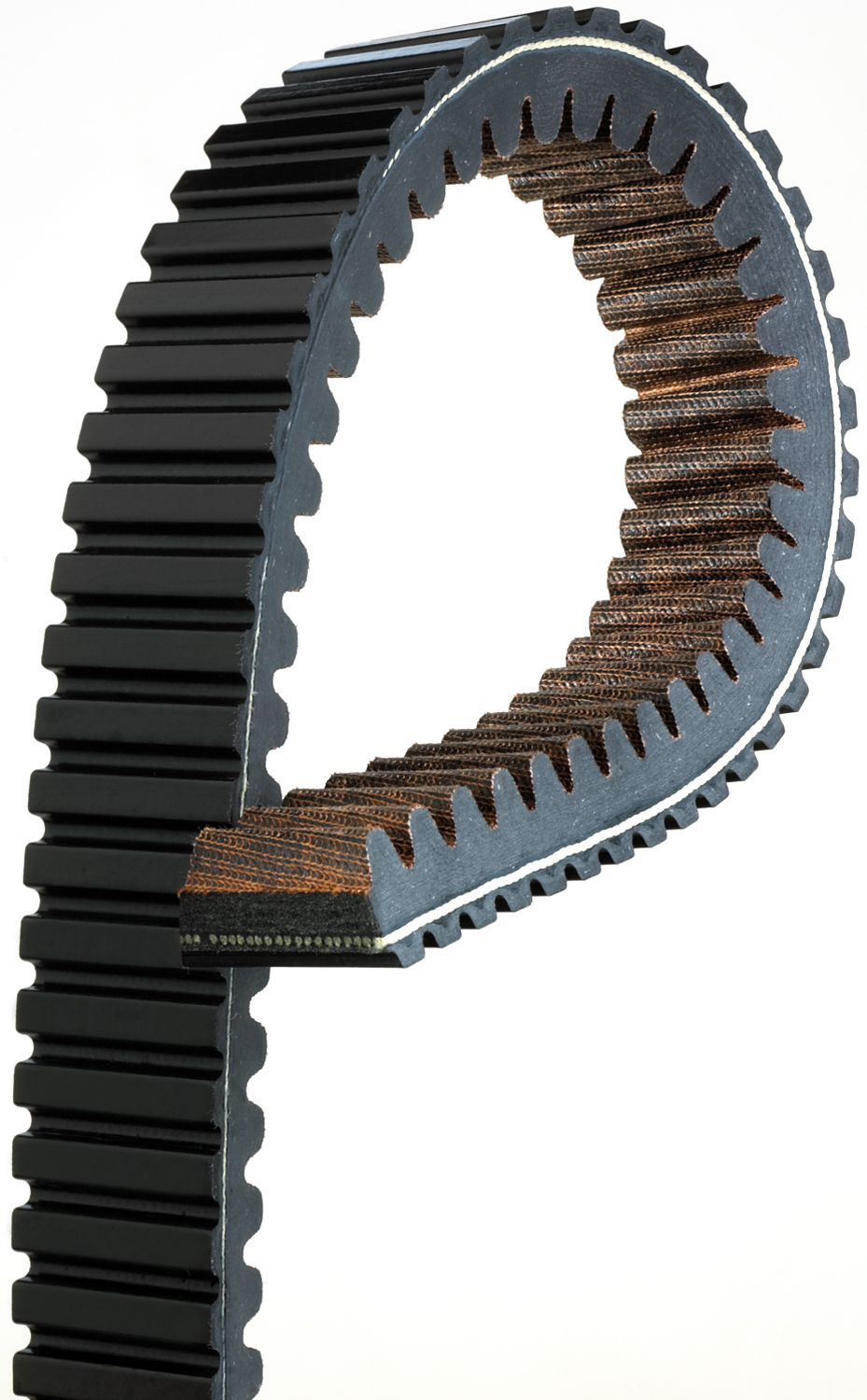

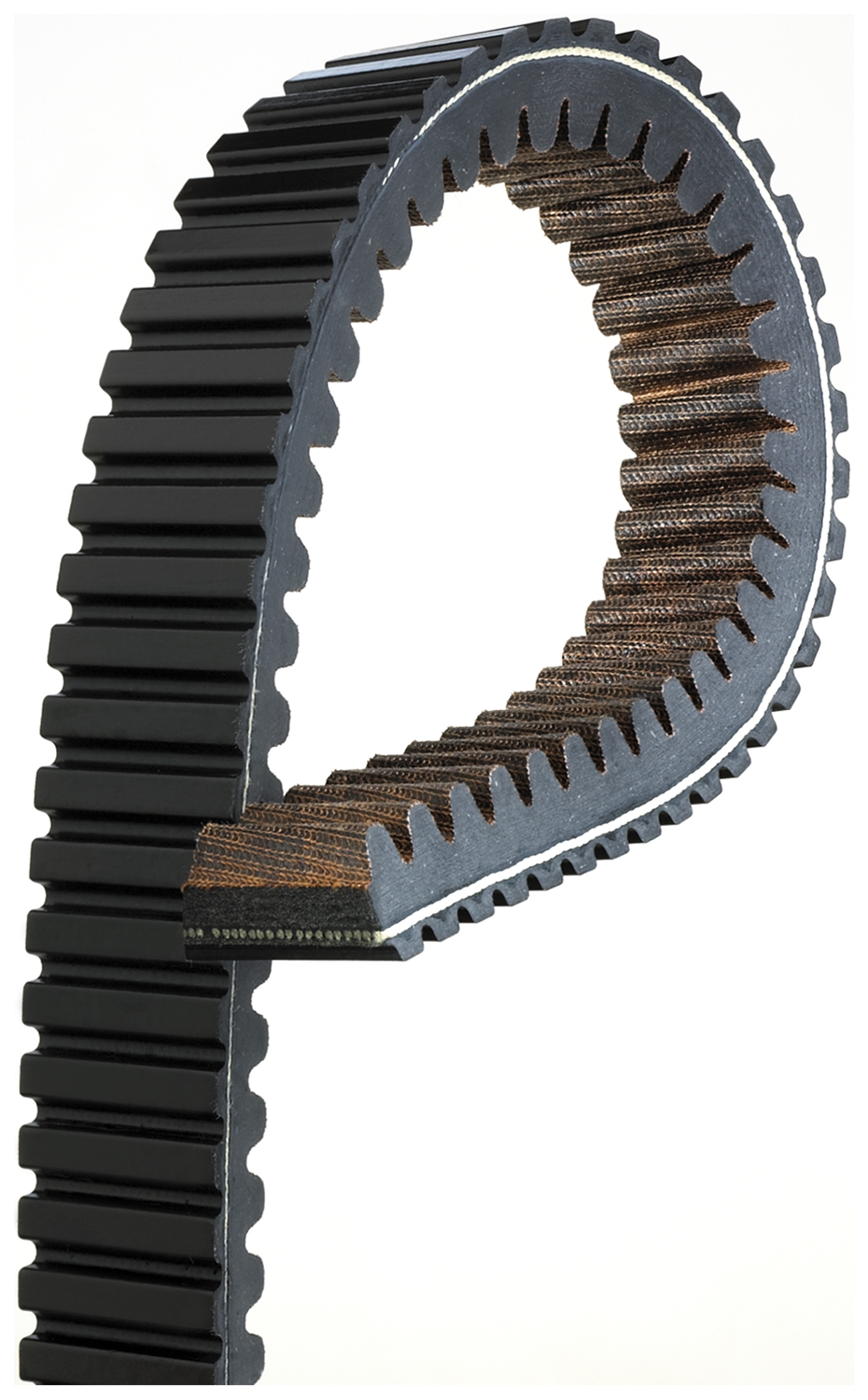

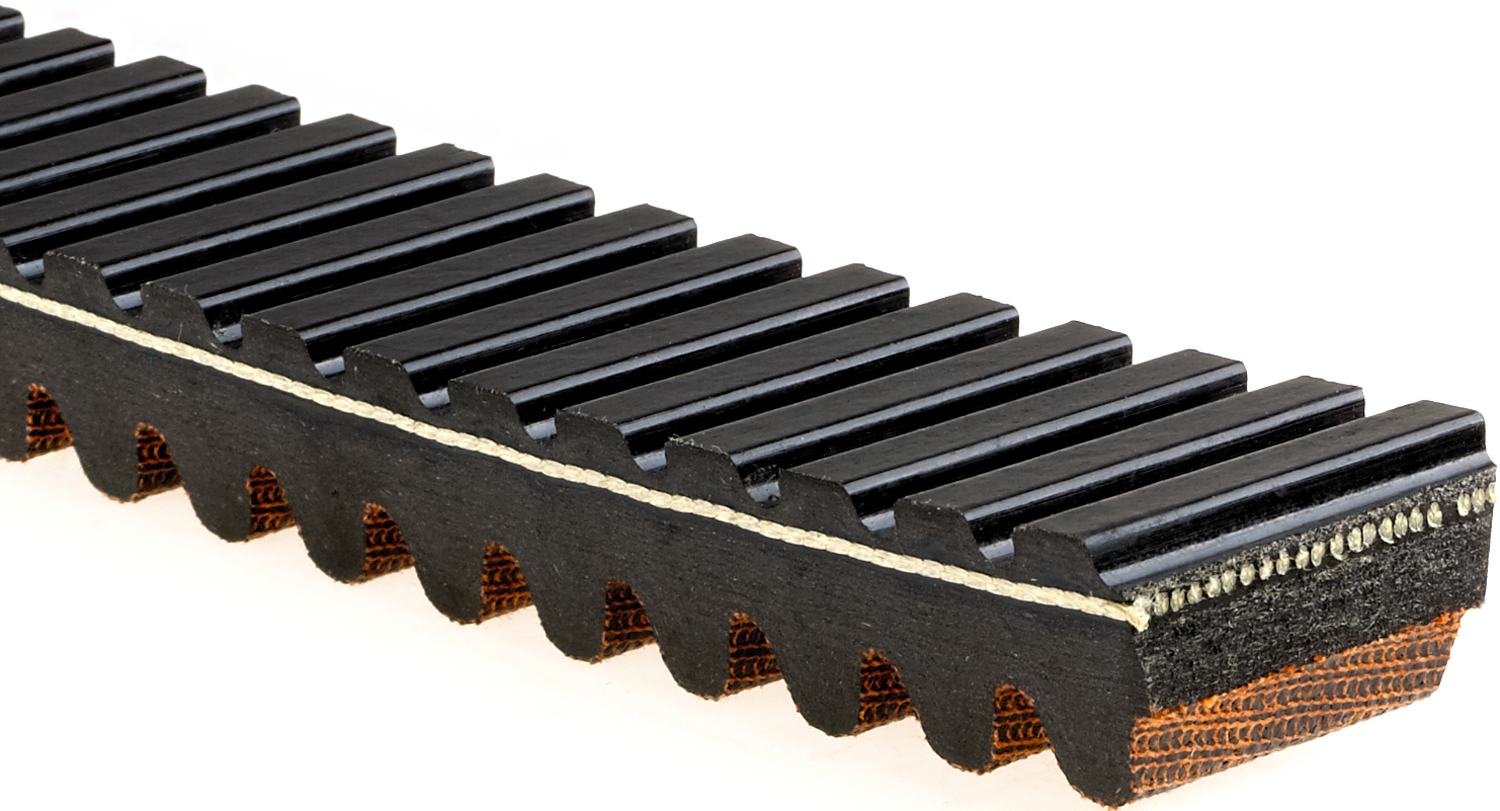

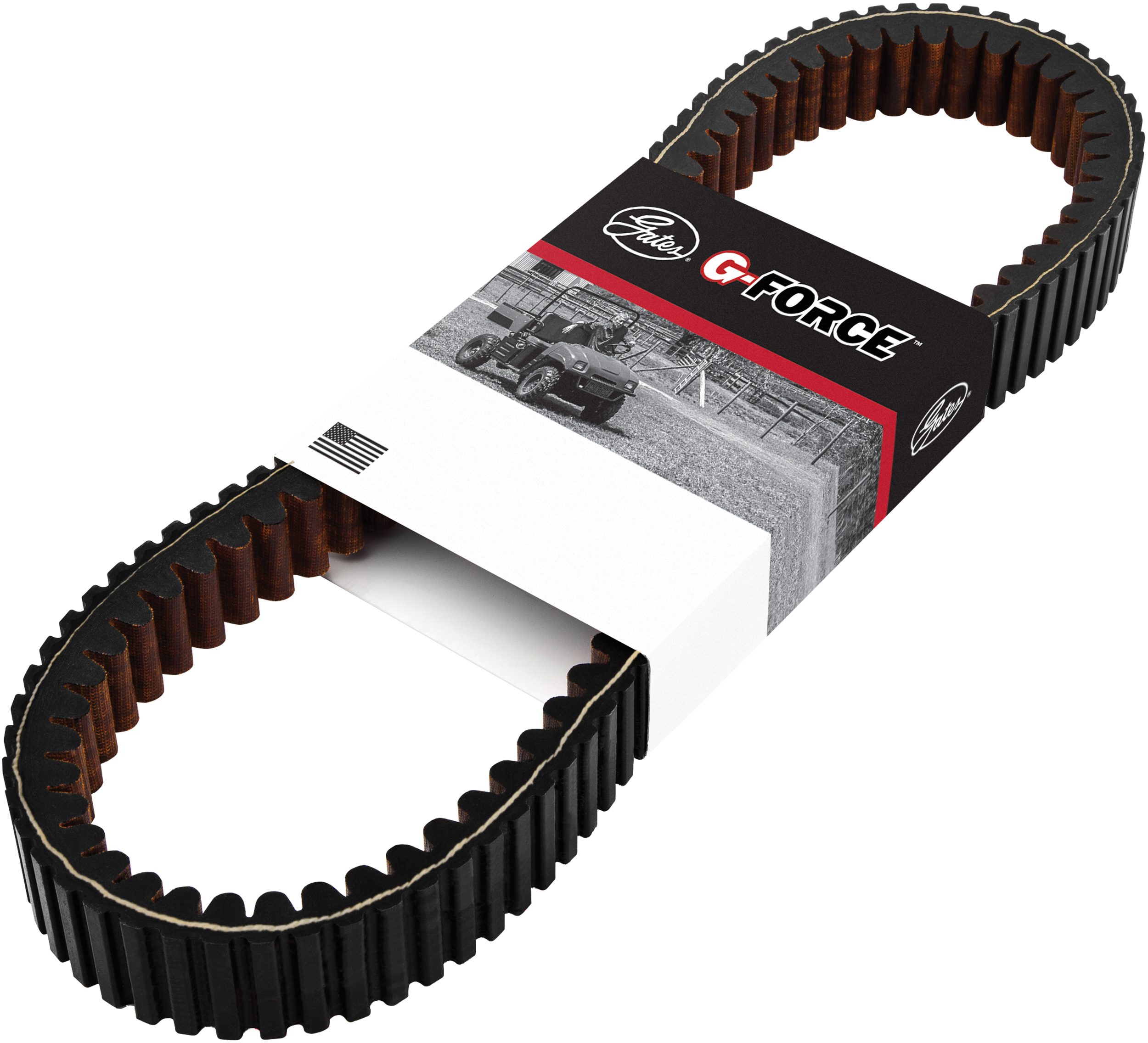

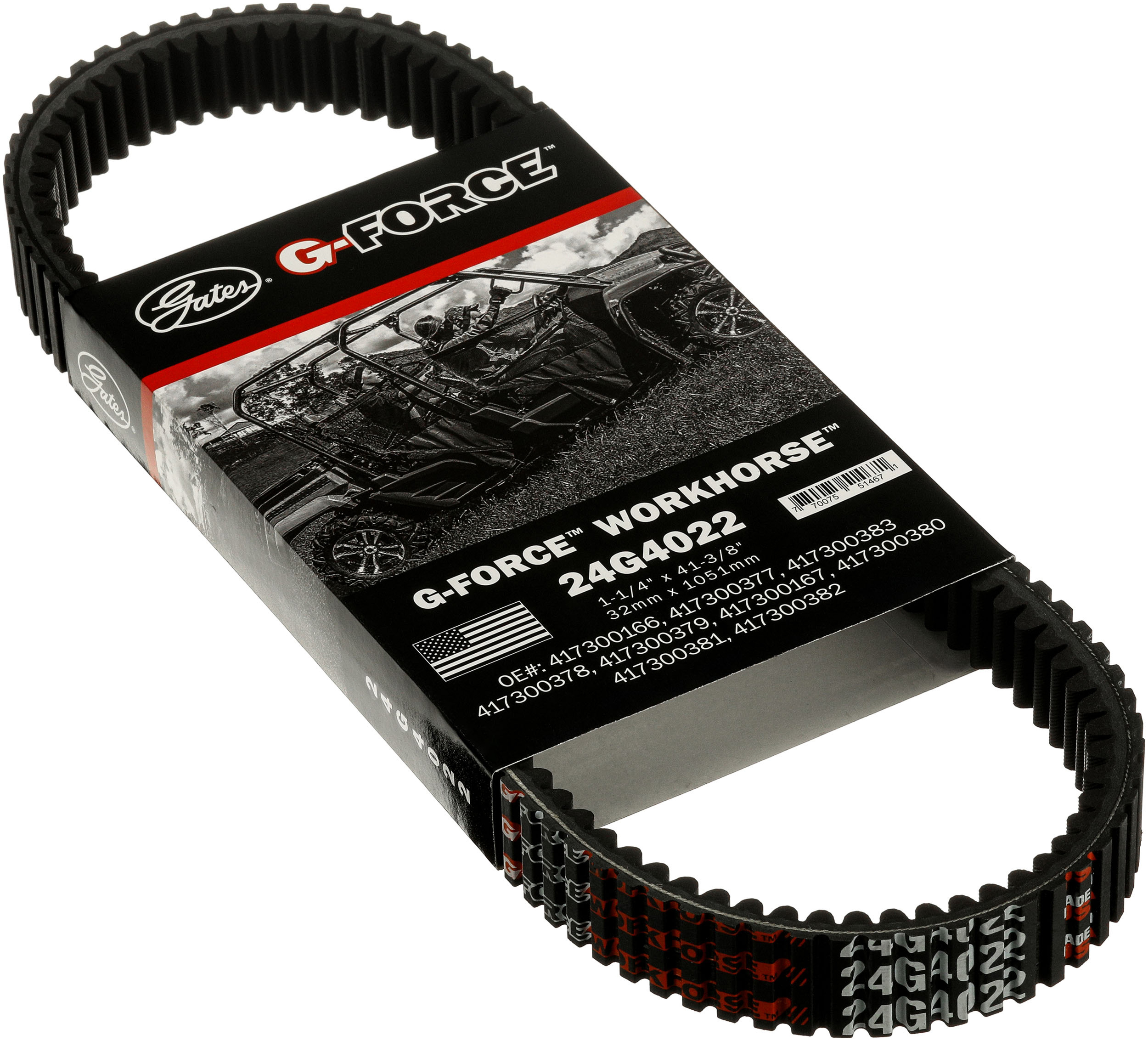

G-Force Workhorse Continuously Variable Transmission (CVT) Belt
Write a review
Part # 24G4022 | Line Code: GAT
brandNameImage
brandNameImage
$118.99
$118.99
error
Not Fitted
store
Pickup
Select a store for availability
Select a Store
Product Details
expand_less
Belt Material Chloroprene
Construction Double Notched
Fabric Bottom Yes
Top Width (in) 1.25
Outside Circumference 1051
Top Width (mm) 32
Heavy Duty Supplier Yes
Color Black
Outside Circumference (in) 41.375
Cross Section Designation RVS-R
Outside Circumference (mm) 1051
Section RVS-R
Type Power Sport CVT Belt
Angle 26
OE Comparison Rating OE Performance
Notched Yes
Bottom Material No
Top Width 1.25
Cord Material Aramid
Grade Type OE Performance
Part Terminology Automatic Continuously Variable Transmission (CVT) Belt
Features & Benefits
expand_more
G-Force WorkHorse™ Our newest Gates G-Force WorkHorse CVT belt, is engineered to handle the toughest tasks and trails, optimized for vehicles with engines less than 800cc.
Application Summary
expand_more
2008-07 Polaris, MV800, 760cc, Drive
Additional Resources
expand_more

Product Documentation

Safety Data Sheet
