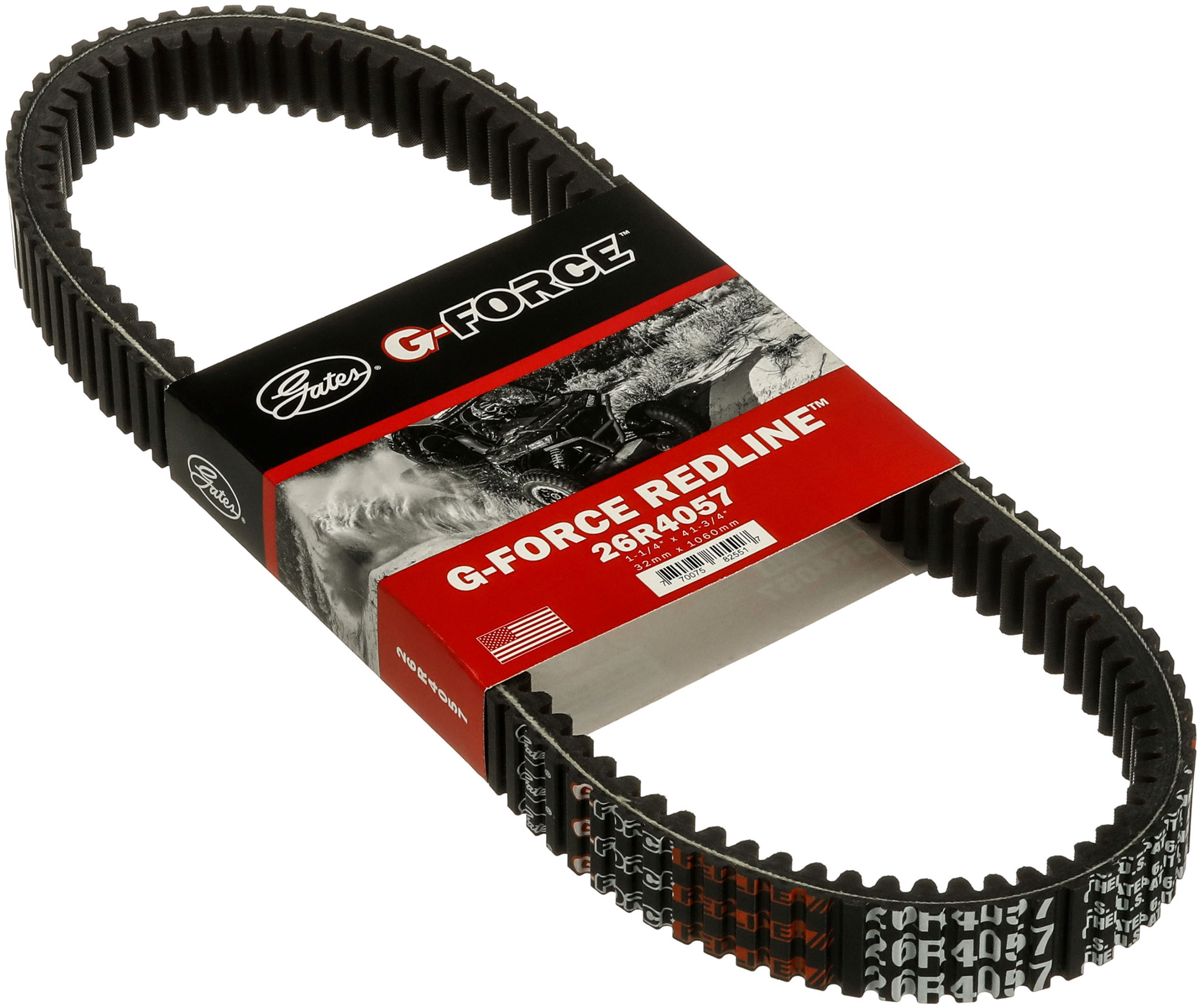

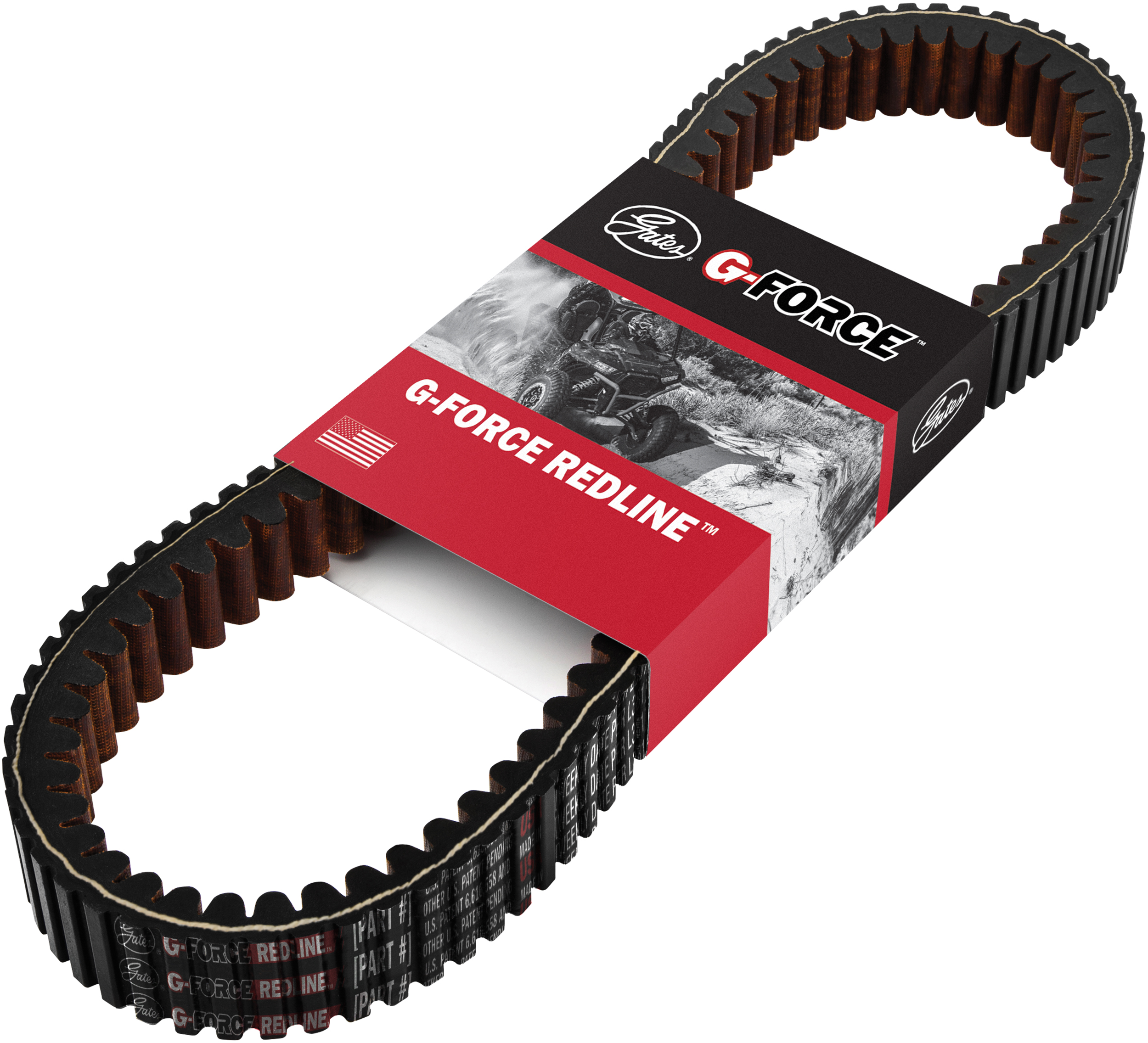

G-Force Redline Continuously Variable Transmission (CVT) Belt
Part # 26R4057 | Line Code: GAT
brandNameImage
brandNameImage

$159.99
$159.99
error
Not Fitted

Product Details
expand_less
Belt Material EPDM
Fabric Bottom Yes
Top Width (in) 1.26
Pitch Width (mm) 30.1
Heavy Duty Supplier Yes
Thickness (in) .627
Outside Circumference (mm) 1060
Notched Yes
PITCH LENGTH (MM) 1030.5
Top Width 1.26
Pitch Length (in) 40.57

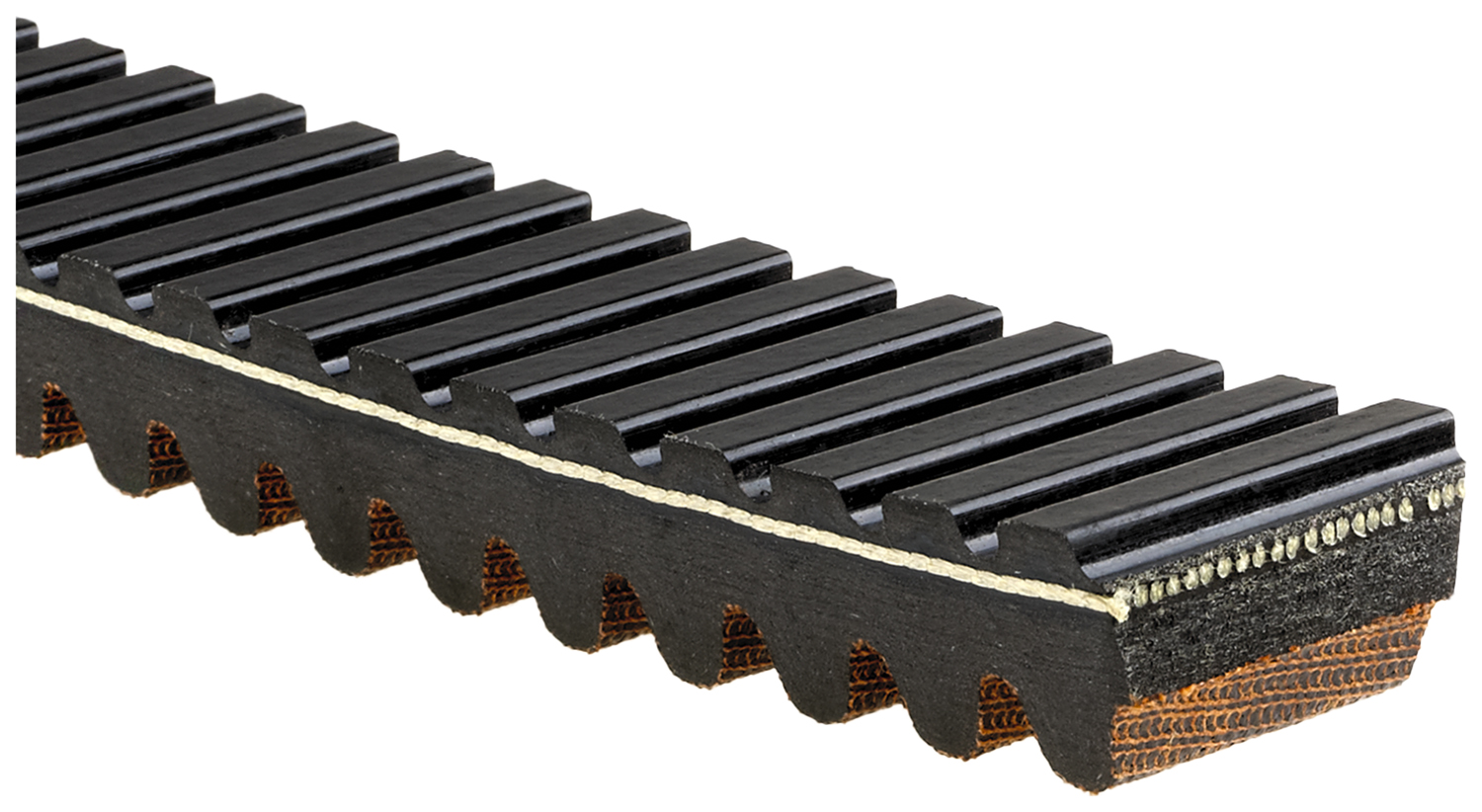

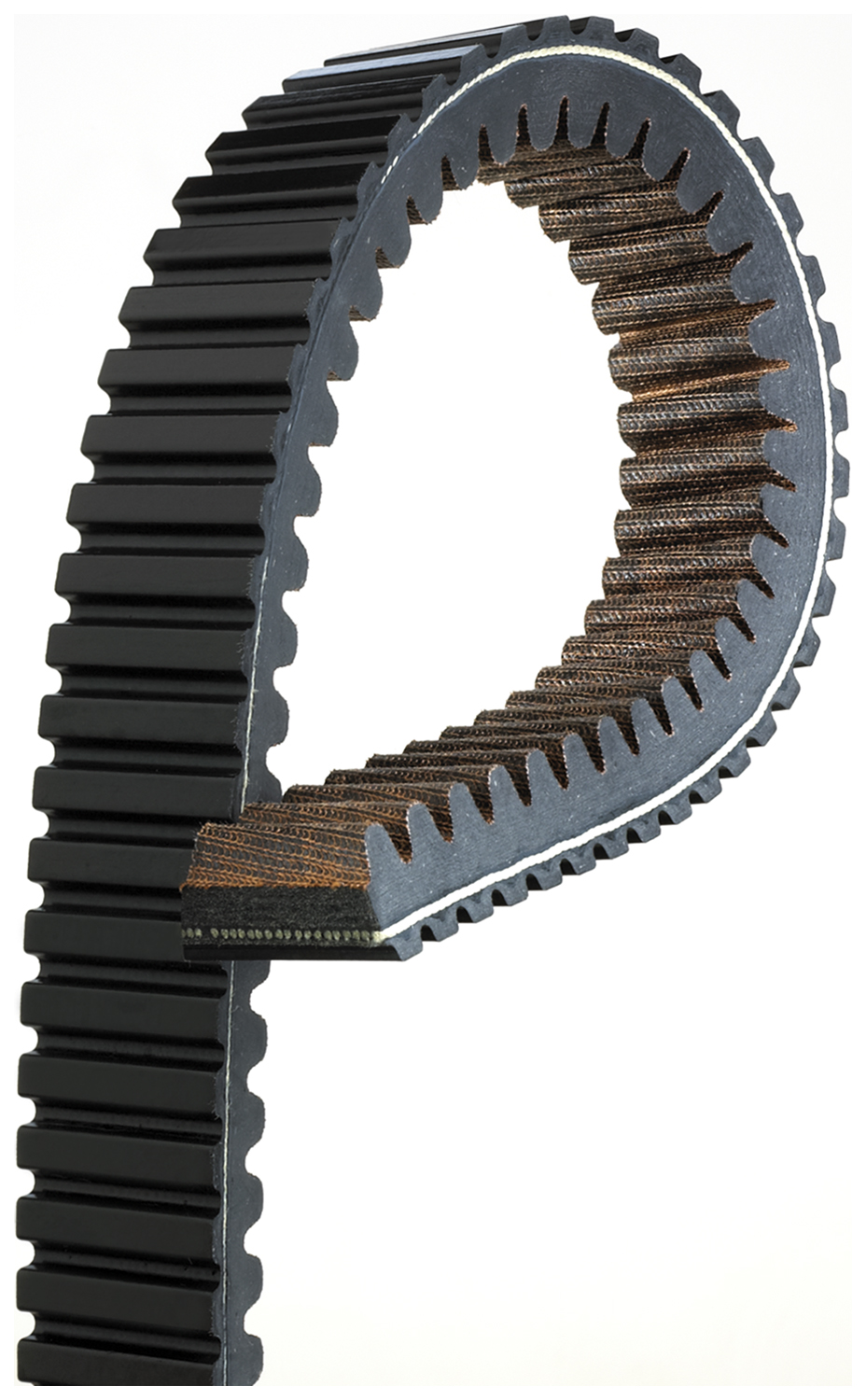

Construction Double Notched
THICKNESS (MM) 15.9
Outside Circumference 1060
Top Width (mm) 32
Color Black
Pitch Width (in) 1.183
Outside Circumference (in) 41.743
Cross Section Designation RVS-R
Section RVS-R
Thickness 15.9
Type Power Sport Specialty High Performance CVT Belt
Angle 26
OE Comparison Rating OE Improved
Bottom Material Yes
Cord Material Aramid
Grade Type OE Improved
Part Terminology Automatic Continuously Variable Transmission (CVT) Belt

Features & Benefits
expand_more
Gates G-Force RedLine CVT Belts are the first of a new generation of Continuously Variable Transmission (CVT) belts. Gates’ innovative design results in better acceleration, higher top speeds, less speed ratio and energy loss in extreme off-road environments.

Application Summary
expand_more

2022 Polaris, Pro XD, 567cc, Drive
