Length | 2.81 |
Hose Inside Diameter (in) | .375 |
Stem Hex (in) - H1 | .625 |
Thread Size | 3/8-18 |
Nut Hex (in) - H2 | .875 |
Hose Inside Diameter (mm) | 9.5 |
Cut Off (mm) - C | 43.4 |
Cut Off (in) - C | 1.71 |
Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |

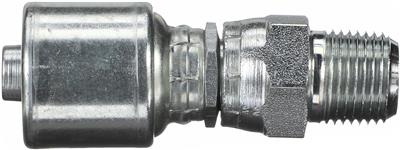

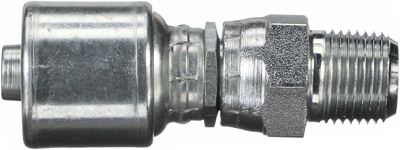

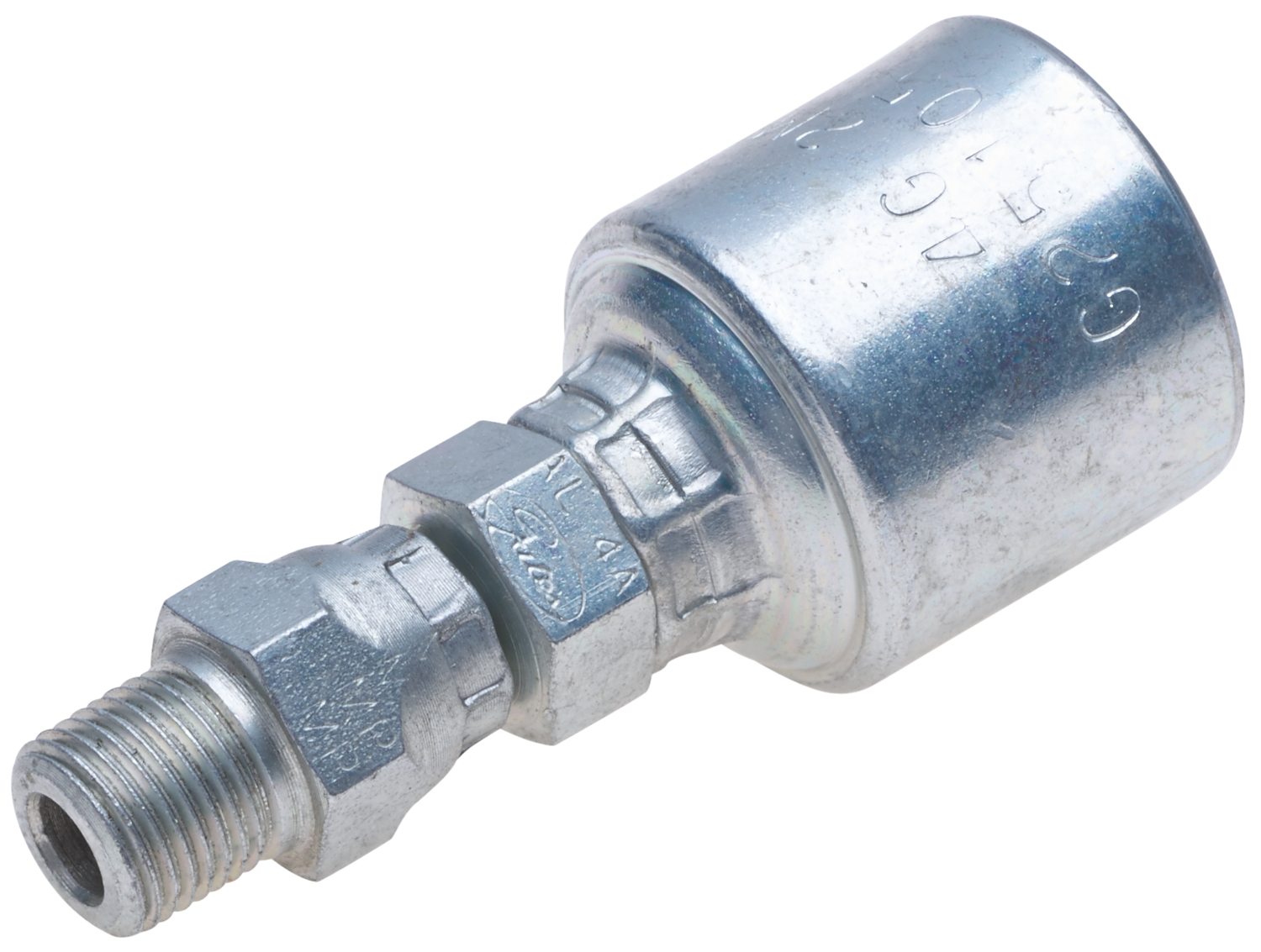

Coupling Description | MegaCrimp Male Pipe Swivel (NPTF - w/o 30 Cone Seat) |
Industrial Description | 6G-6MPX |
Heavy Duty Supplier | Yes |
Bent Tube Angle | Straight |
Thread Angle | 60 |
Seal Type | Thread Interference |
Swivel | Yes |
Gender | Male |
Gates MegaCrimp couplings are designed for use with Gates wire braid hydraulic hose to create a robust, leak-free assembly. The pre-assembled coupling is designed with a patented C insert attached to the ferrule. This design ensures that crimping forces are evenly distributed to form a concentric, leak-free seal.
One MegaCrimp coupling size can accommodate various one and two-wire braid hydraulic hoses of different constructions and wall thicknesses, simplifying inventory requirements, helping to reduce costs and simplifying coupling selection.
Not to be used as a live swivel.
