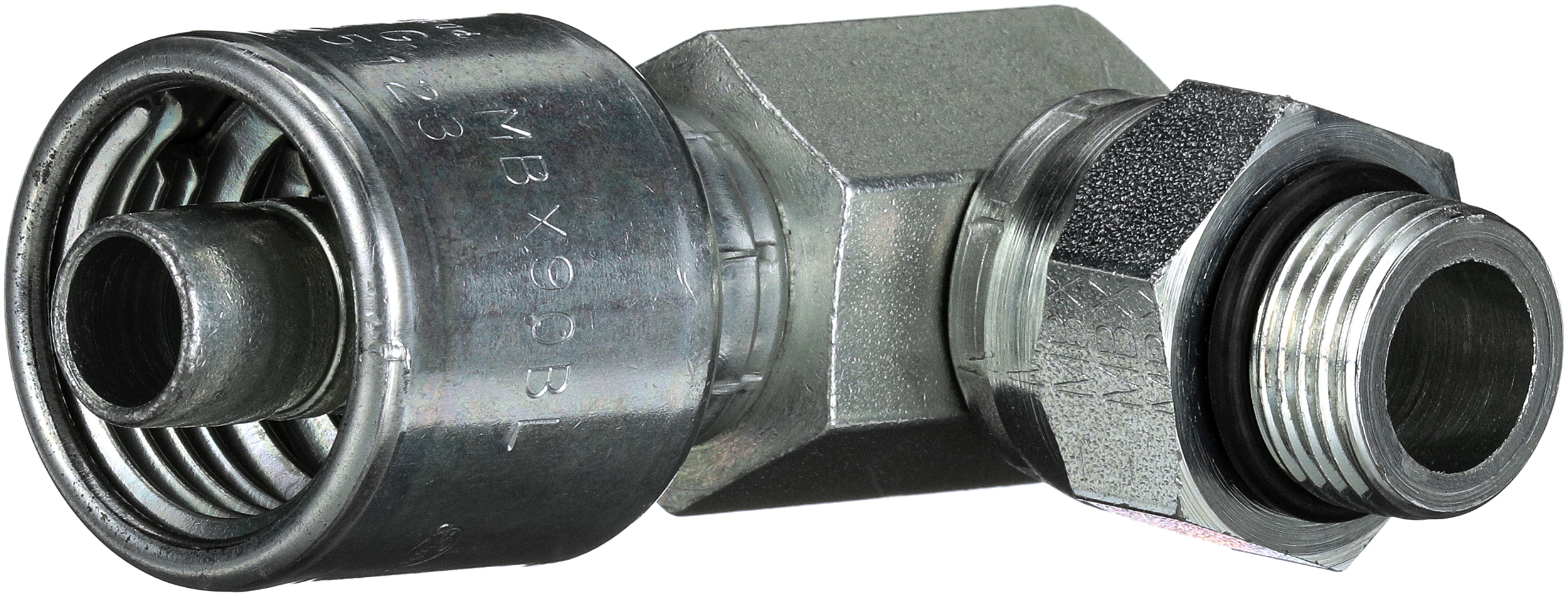

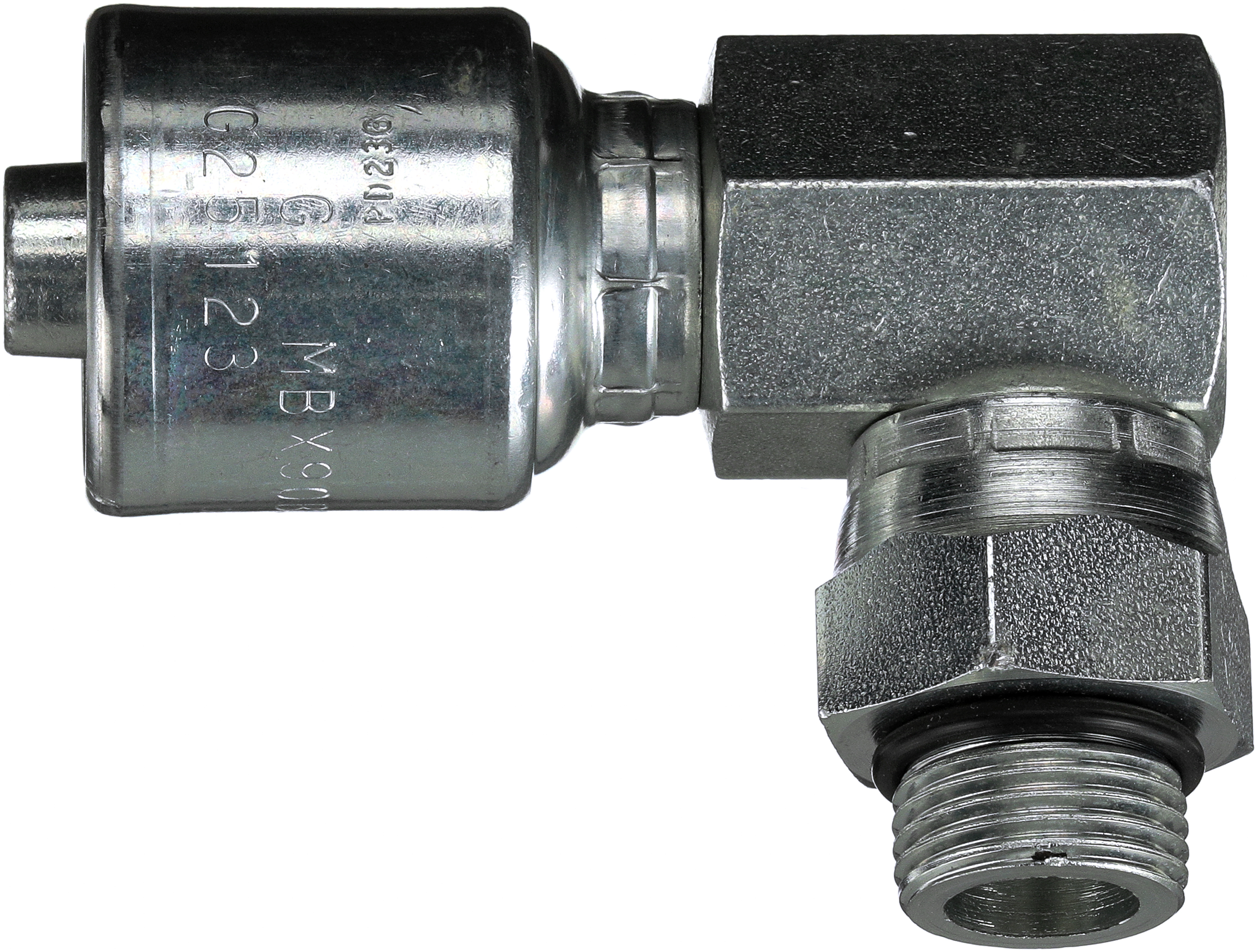

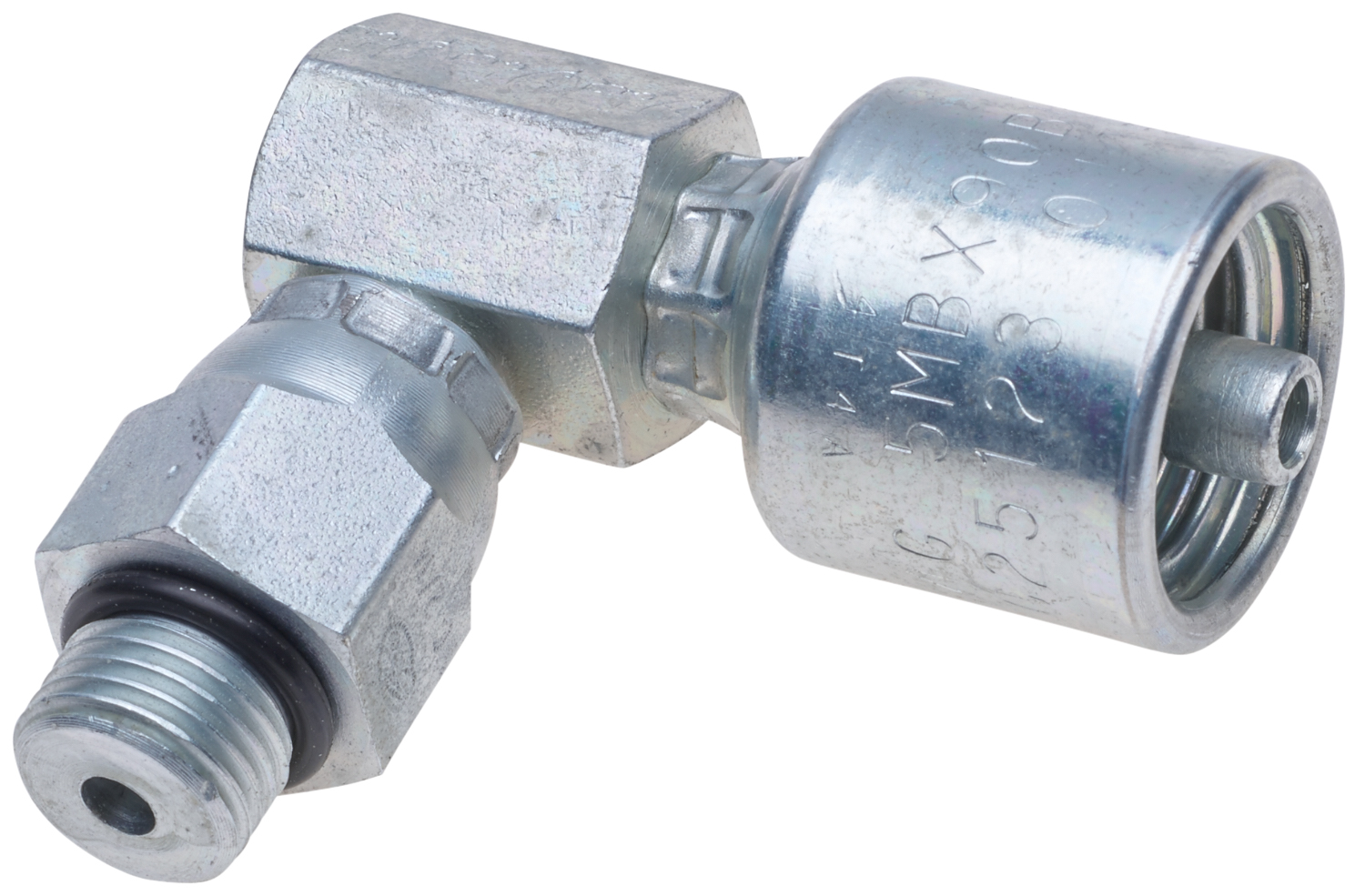

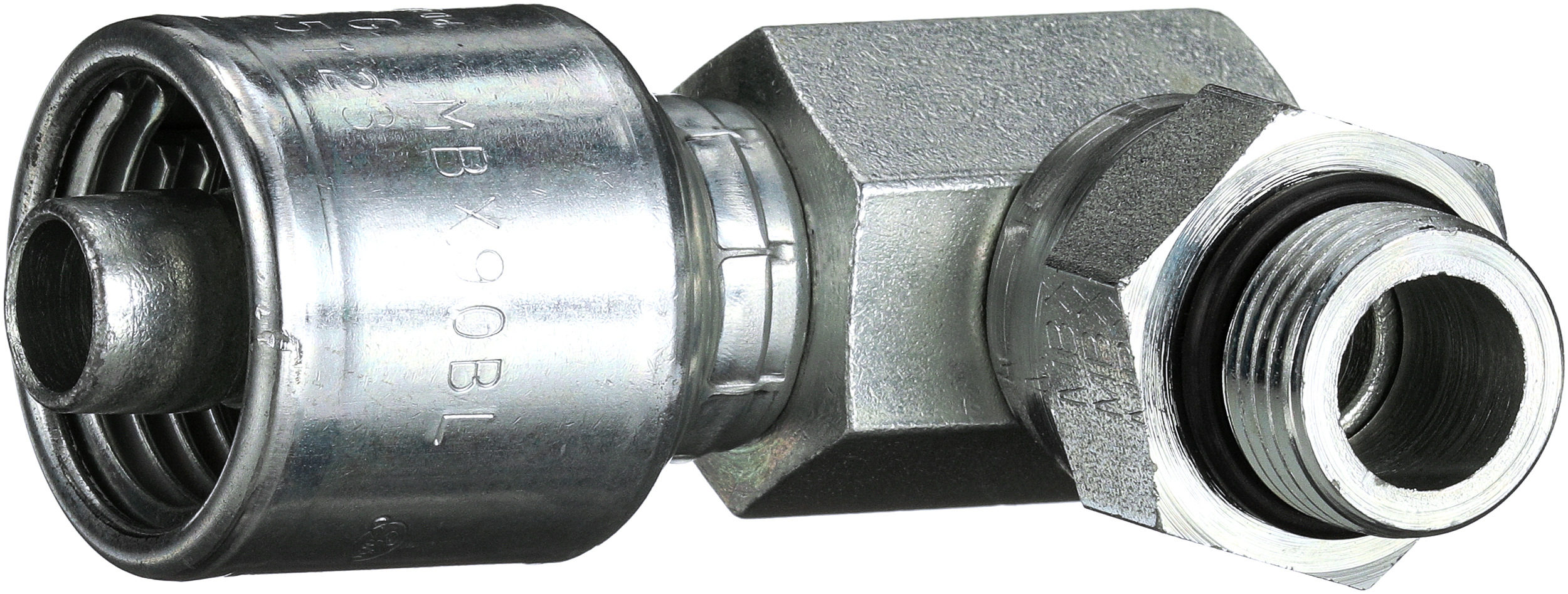

Male o-ring boss swivel - 90 block (megacrimp)
Part # G25123-0808 | Line Code: GAH
brandNameImage
brandNameImage

$47.99

help
Not Fitted / Universal


Product Details
expand_less
Length 2.55
Hose Inside Diameter (in) .5
Hose Inside Diameter (mm) 12.7
Thread Size 3/4-16
Drop (mm) - T 44.5
Drop (in) - T 1.75
Cut Off (mm) - C 27.2
Cut Off (in) - C 1.07
Hose Recommendation Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose
Nut Hex (in) - H2 1
Coupling Description MegaCrimp Male O-Ring Boss Swivel - 90 Block
Industrial Description 8G-8MBX90BL
Heavy Duty Supplier Yes
Bent Tube Angle 90 Block
O-Ring Location Outside O-Ring Boss
Swivel Yes
Gender Male
Seal Type O-Ring

Features & Benefits
expand_more

Gates MegaCrimp couplings are designed for use with Gates wire braid hydraulic hose to create a robust, leak-free assembly. The pre-assembled coupling is designed with a patented C insert attached to the ferrule. This design ensures that crimping forces are evenly distributed to form a concentric, leak-free seal.

One MegaCrimp coupling size can accommodate various one and two-wire braid hydraulic hoses of different constructions and wall thicknesses, simplifying inventory requirements, helping to reduce costs and simplifying coupling selection.

  • Robust bite-the-wire crimp
  • Low profile
  • Full-stem insertion
  • Full-length crimp
  • Tested to industry-leading 600,000 impulse cycles
  • Simplifies inventory management
  • Environmentally-friendly TuffCoat plating for 345 percent better corrosion resistance than SAE standard

Not to be used as a live swivel. Internal O-rings rated at +250 Deg. F (+121 Deg. C). SAE J1926/3 ISO 11926-3 Light-Duty (L Series) Stud End.
