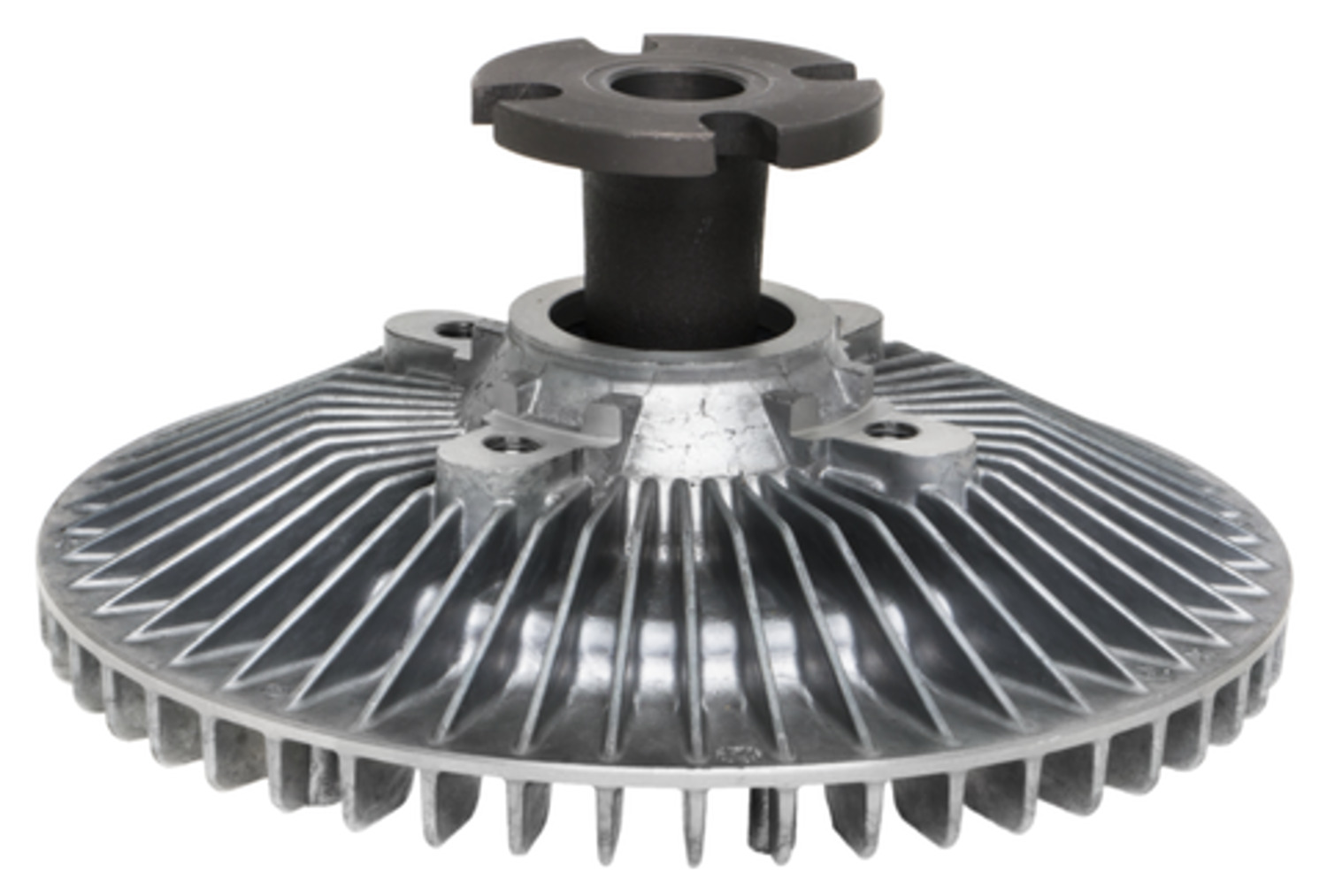

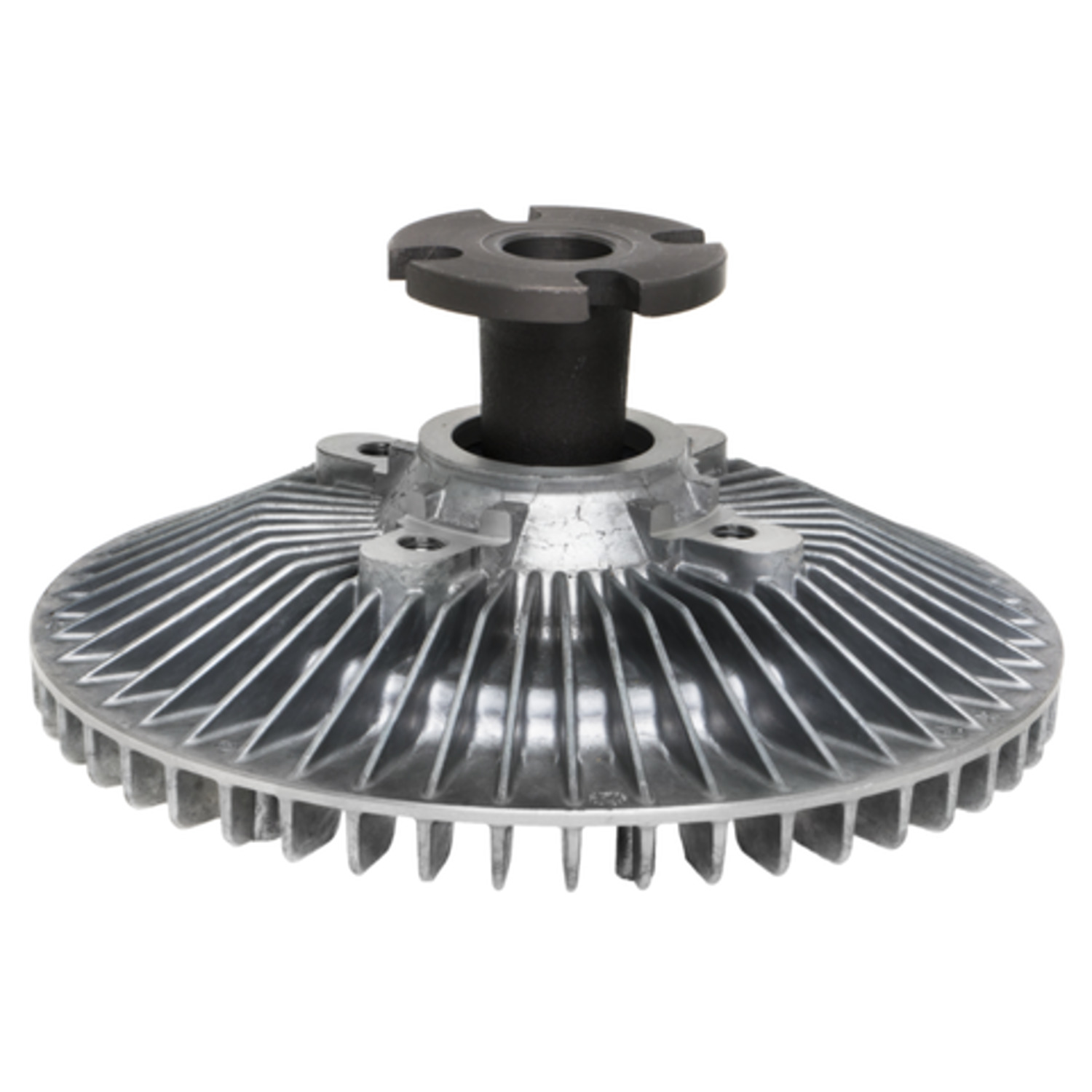

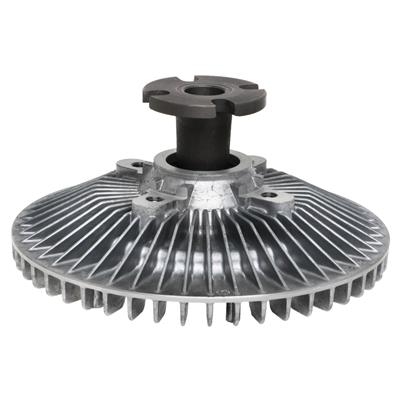

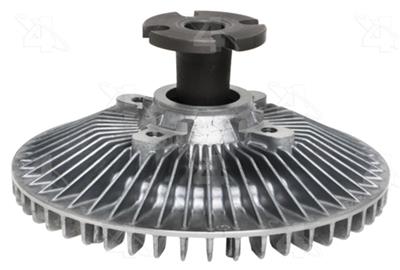

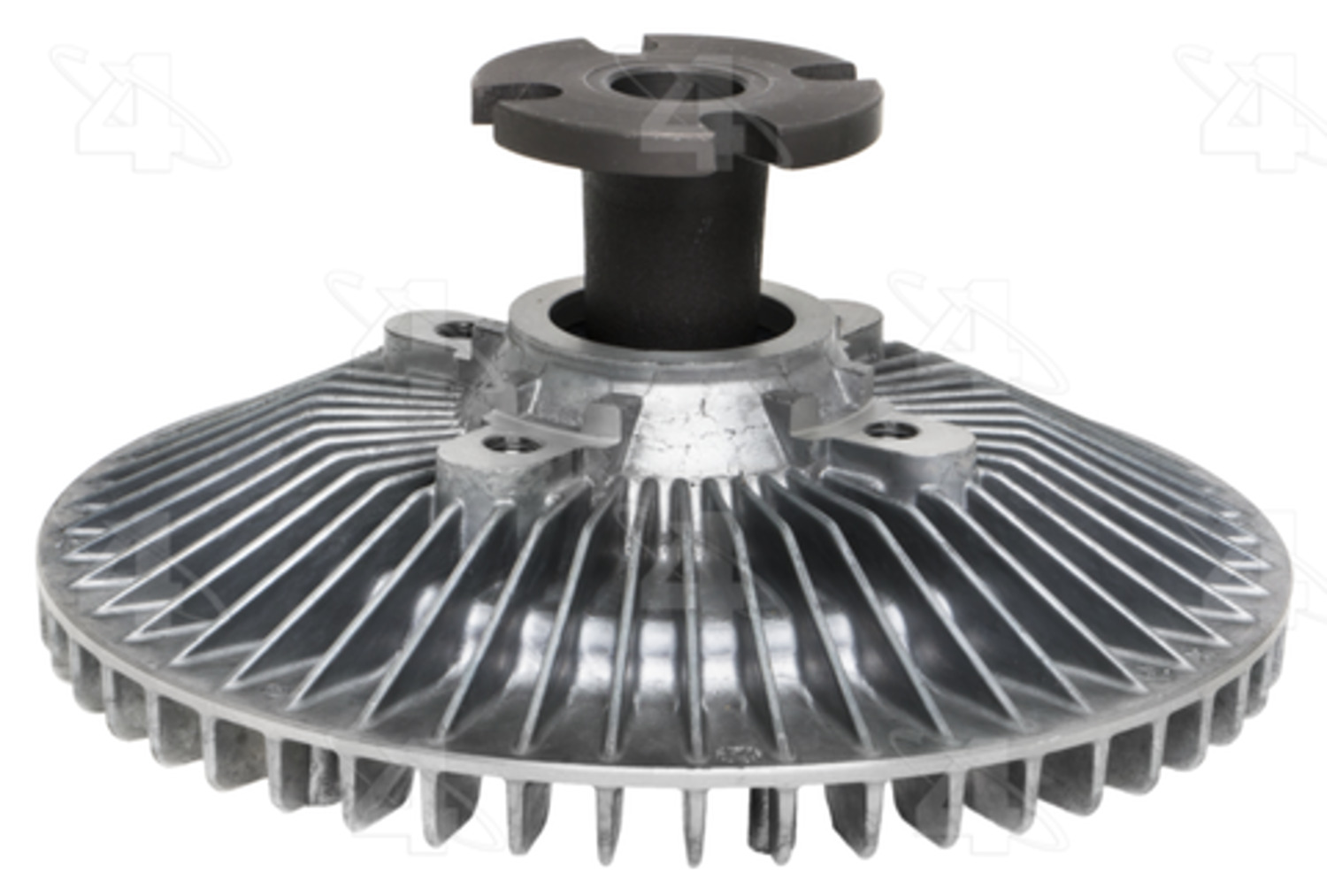

Standard rotation thermal standard duty fan clutch
Part # 2710 | Line Code: HFC
brandNameImage
brandNameImage

$50.99

help
Not Fitted / Universal


Product Details
expand_less
Terminal Type N/A
Clutch Maximum Diameter 7.2
Distance From Clutch To Mounting Flange 1.75
Mounting Type Flange
Use Type Standard
Rotation STD
Mounting Hole Quantity 4
Color Raw Aluminum in Color
Bolt Hole Quantity 4
Material Aluminum
California Proposition 65 WARNING: This product contains a chemical known to the State of California to cause cancer.
Clutch Type B - Non-Thermal & Std Thermal
Fan Mount Height MM 44.45
O.E. Replacement? Yes
New or Reman New
Meets / Exceeds OEM? Yes
SDS Required No (135233618)
Performance Rated? Yes
Mounting Hardware? Not Included
Type Thermal
Bolt Thread 5/16-18 Hole
Bolt Quantity 4
Description Fan Clutches
Electronic Clutch? Non Electronic
Duty Rating Standard
Style Standard Duty
Overall Dia. MM 182.9
Mount Dia. MM 59
Overall Height MM 83.8
Drawing Type B
Pilot Depth MM 19.1
Mount Dia. IN 2.33
Fan Mount Dia. MM 60.2
Fan Bolt Circle MM 76.2
Warranty 1 year/12,000 miles
Dia. IN 7.2
Pilot Dia. IN .63
Overall Dia. IN 7.2
Pilot Depth IN 0.75
Fan Mount Dia. IN 2.37
Fan Bolt Circle IN 3
Overall Height IN 3.3

Features & Benefits
expand_more
Our products are engineered and tested to take the heat so your vehicle won't. Backed by over 45 years of automotive cooling experience, fix it once and fix it right with Hayden.

Application Summary
expand_more

Buick Skyhawk (80-75); Skylark (68); Special (68) >> Cadillac Fleetwood / Brougham (64) >> Checker Deluxe (69); Marathon (68-65) >> Chevy Bel Air (69-55); Biscayne (69-58); Camaro (68-67); Caprice (69-66); Chevelle (68-64); CHEVY II (68-64)
