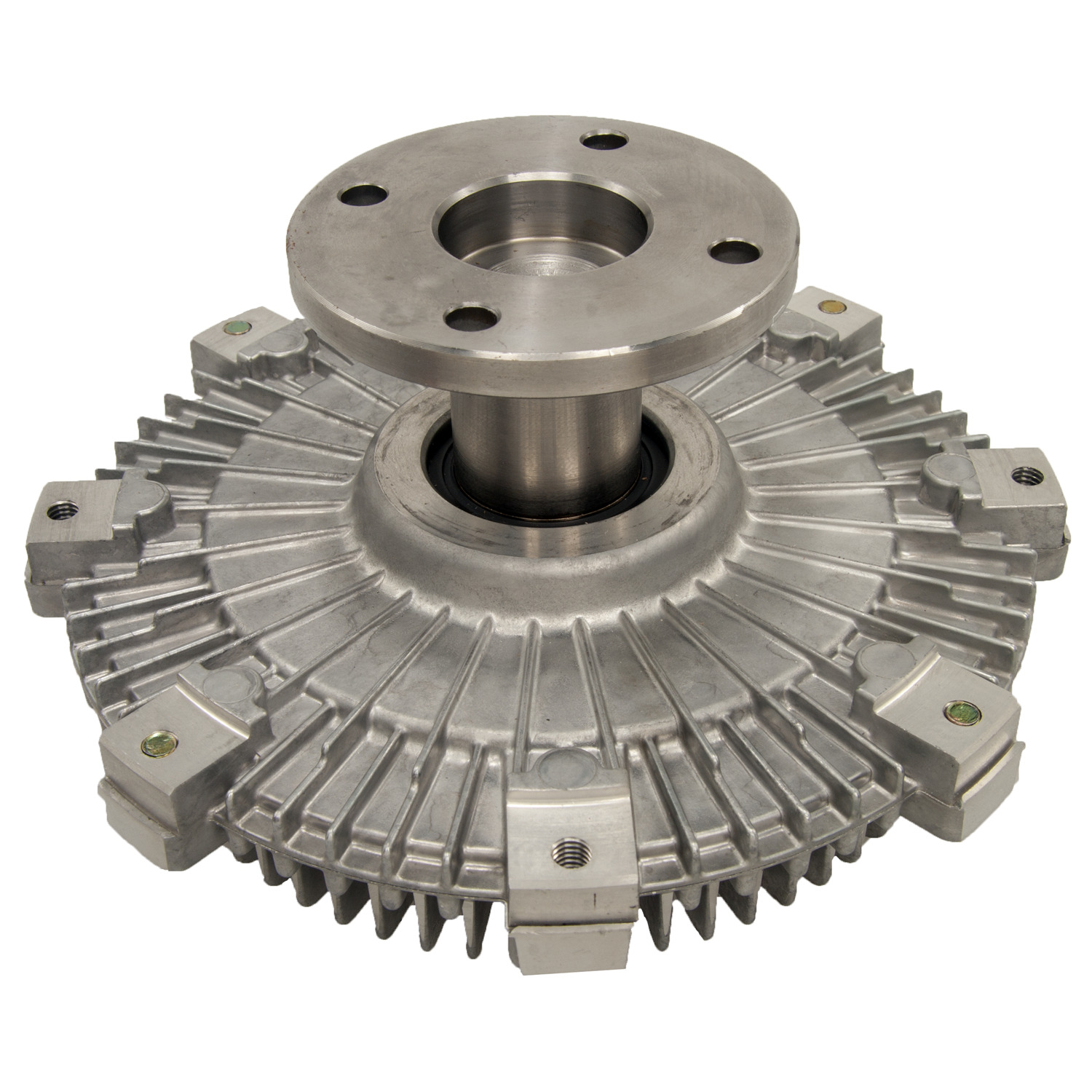

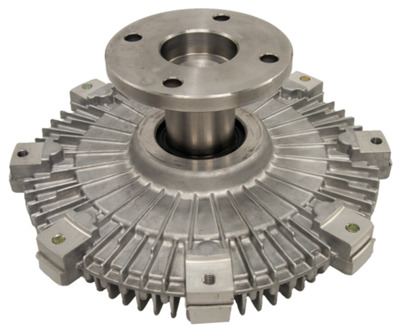

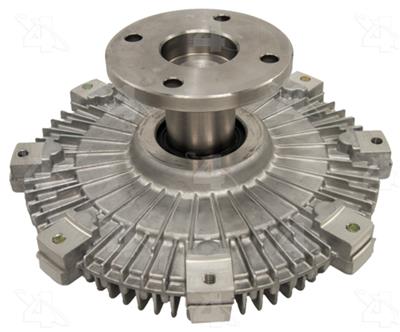

Standard rotation thermal heavy duty fan clutch
Part # 6601 | Line Code: HFC
brandNameImage
brandNameImage

$139.99

help
Not Fitted / Universal


Product Details
expand_less
Terminal Type N/A
Distance From Clutch To Mounting Flange 2.66
Clutch Maximum Diameter 7.01
Mounting Type Flange
Rotation REV
Mounting Hole Quantity 4
Color Raw Aluminum in Color
Use Type Heavy
Bolt Hole Quantity 4
Material Aluminum
Clutch Type A - 5" & 6" Import
O.E. Replacement? Yes
New or Reman New
Meets / Exceeds OEM? Yes
SDS Required No (135233618)
Performance Rated? Yes
Mounting Hardware? Not Included
Type Thermal
Bolt Quantity 4
Description Fan Clutches
Bolt Thread M6 x 1.0 Hole
Electronic Clutch? Non Electronic
Drawing Type A
Duty Rating Heavy
Style Heavy Duty
Mount Dia. IN 3.07
Mount Dia. MM 78
Pilot Depth MM 11.4
Pilot Dia. IN 1.25
Overall Dia. MM 178.1
Overall Height MM 90.5
Fan Mount Dia. MM 144.9
Fan Bolt Circle MM 164.6
Fan Mount Height MM 67.6
Fan Mount Dia. IN 5.71
Warranty 1 year/12,000 miles
Dia. IN 7.01
Pilot Depth IN 0.45
Overall Height IN 3.56
Fan Bolt Circle IN 6.48
Overall Dia. IN 7.01

Features & Benefits
expand_more
Our products are engineered and tested to take the heat so your vehicle won't. Backed by over 45 years of automotive cooling experience, fix it once and fix it right with Hayden.

Application Summary
expand_more

Nissan Frontier (19-05); NV1500 (21-12); NV2500 / NV2500 HD (21-12); NV3500 /NV3500 HD (20-12); Pathfinder (12-05); Xterra (15-05) >> Suzuki Equator (12-09)
