| IBS to Outer Surface | 2.654/2.614 in. |
| Disc Bolt Pattern | 05 |
| Axle Series | For GM |
| Heavy Duty Supplier | Yes |
| Wheel Stud Pattern | 08 |
| Axle Application | Steer |
| Wheel Pilot Diameter | 8.69/8.693 in. |
| Duty Type | Heavy Duty |
| Flange Outer Diameter | 12.618 in. |
| Outer Cone | 32207 |
| Outer Cup | 32207 |
| Inner Cup | JM205110 |
| Tone Ring | N |
| Disc Bolt Size | 5/8-11 UNC-2B |
| Wheel Stud Bolt Circle Diameter | 10.827 in. |
| Wheel Stud Hole | .796/.798 in. |
| Inner Bearing Surface (IBS) to Mounting Face | 6.213 in. |
| Notes | Wheel studs not included |
| Hub Cap Bolt Thread | 5/16-18 UNC-2B |
| Hub Style | Conventional |
| Disc Bolt Circle Diameter | 6.75 in. |
| Oil Seal | 1205H2582 |
| Hub Cap Bolt Circle Diameter | 4.50 in. |
| Pallet Quantity | 10 |
| Weight | 39.15 |
| Fully Dressed | No |
| Brand | Meritor Genuine |
| Rotor Pilot Diameter | 5.40/5.397 in. |
| Hub Cap Pattern | 06 |
| Brake Type | Quadraulic |
| Hub Type | Hub only |
| Inner Cone | JM205149 |
| ABS Pilot Diameter | 4.337/4.334 in. |
| IBS to OBS | 1.783/1.744 in. |
| Base Part Number | 15871 |
| GAWR (lb) | 8102 |

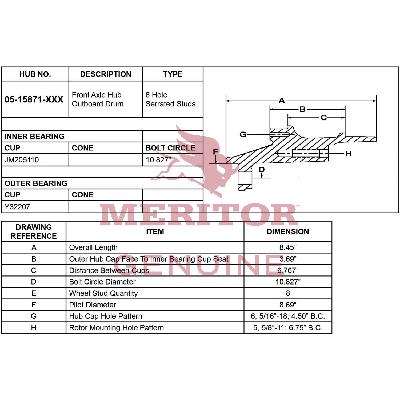

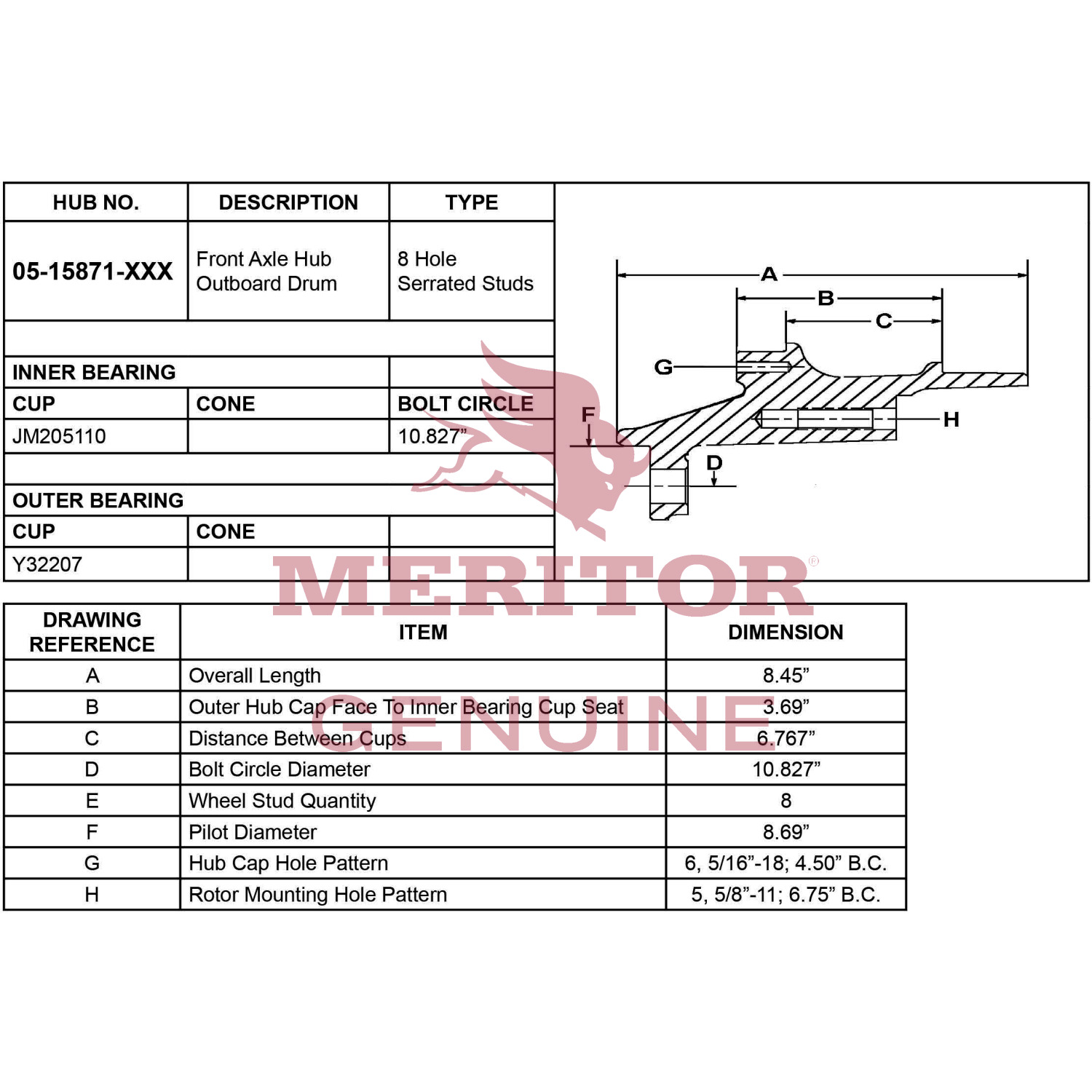

| Part Terminology | Disc Brake Hub |
