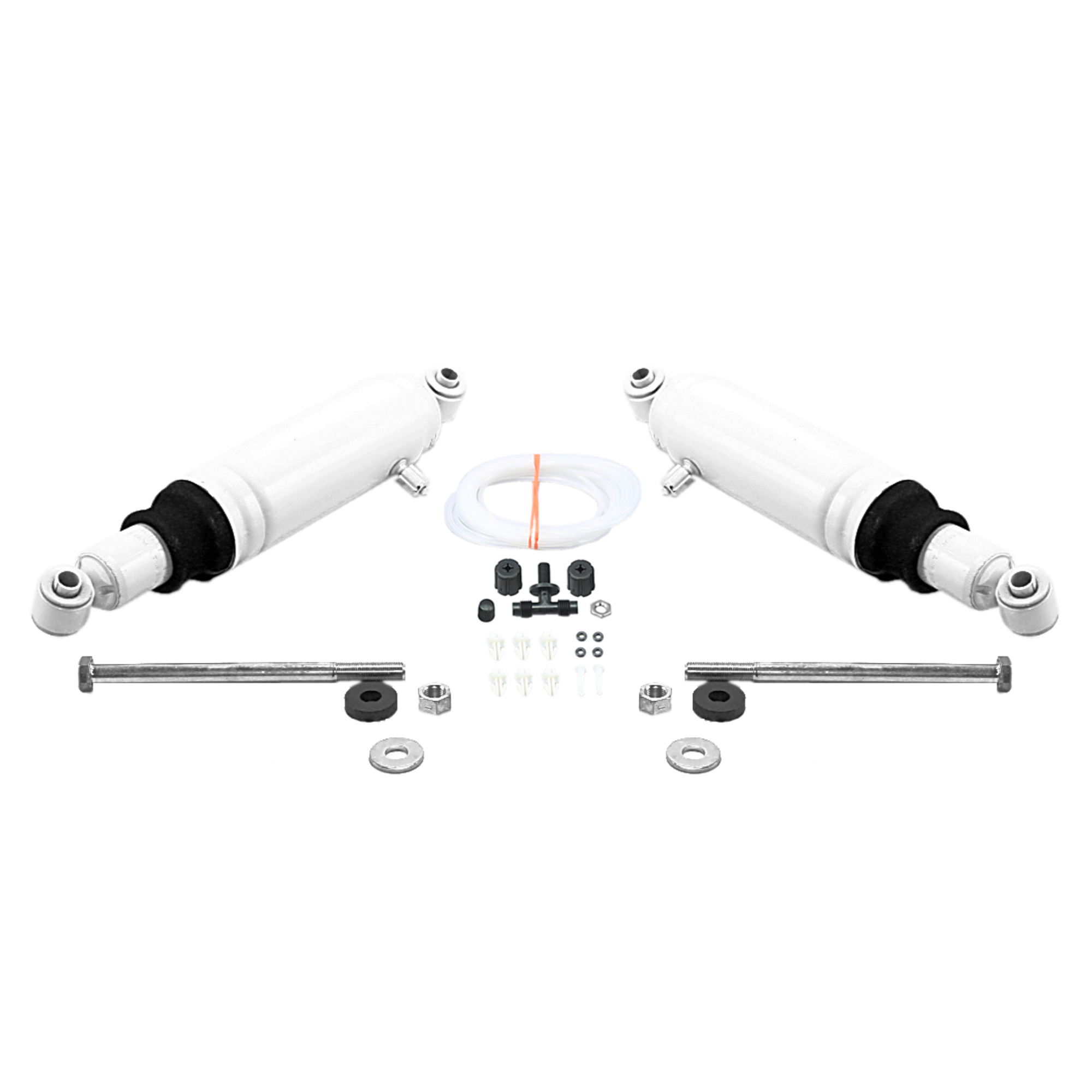

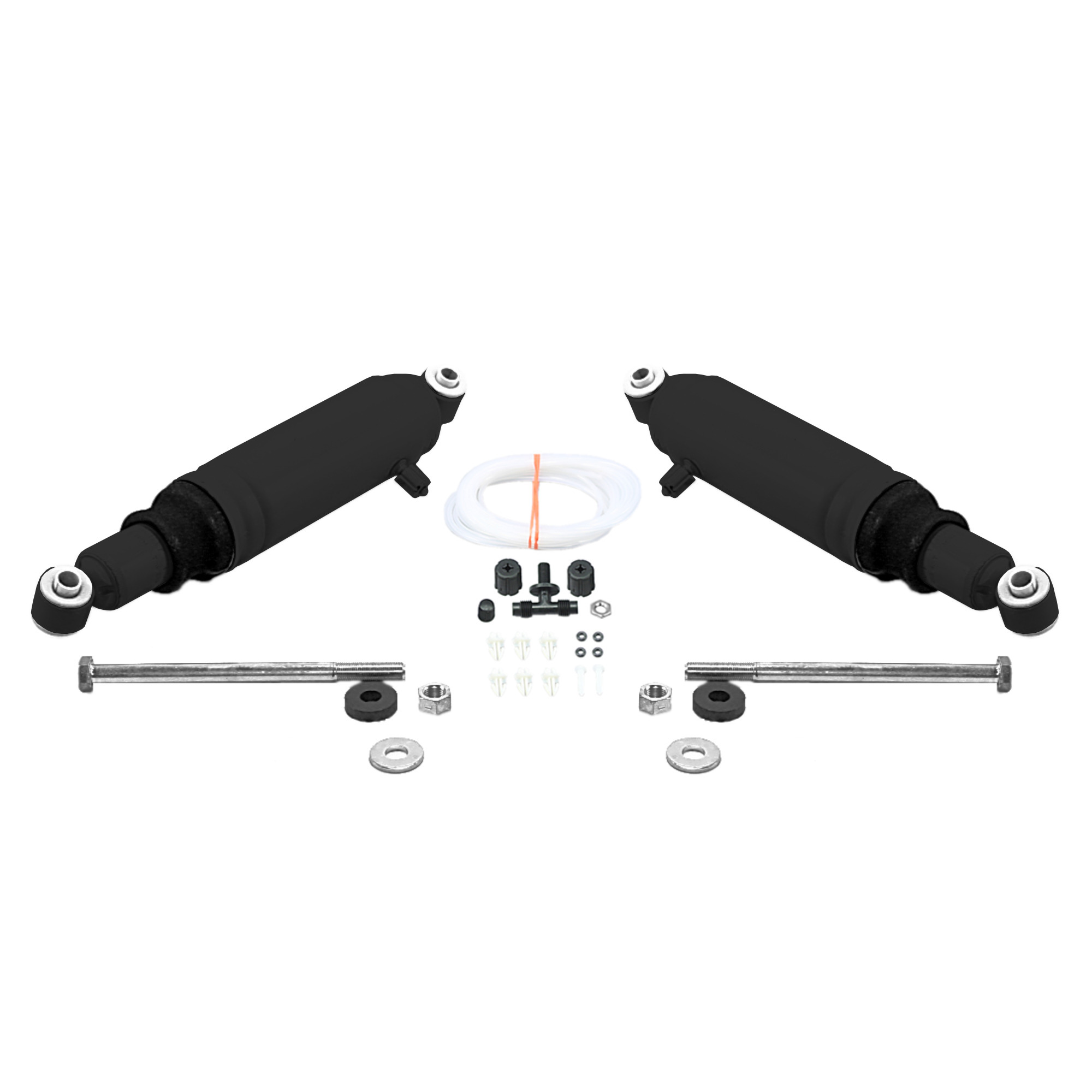

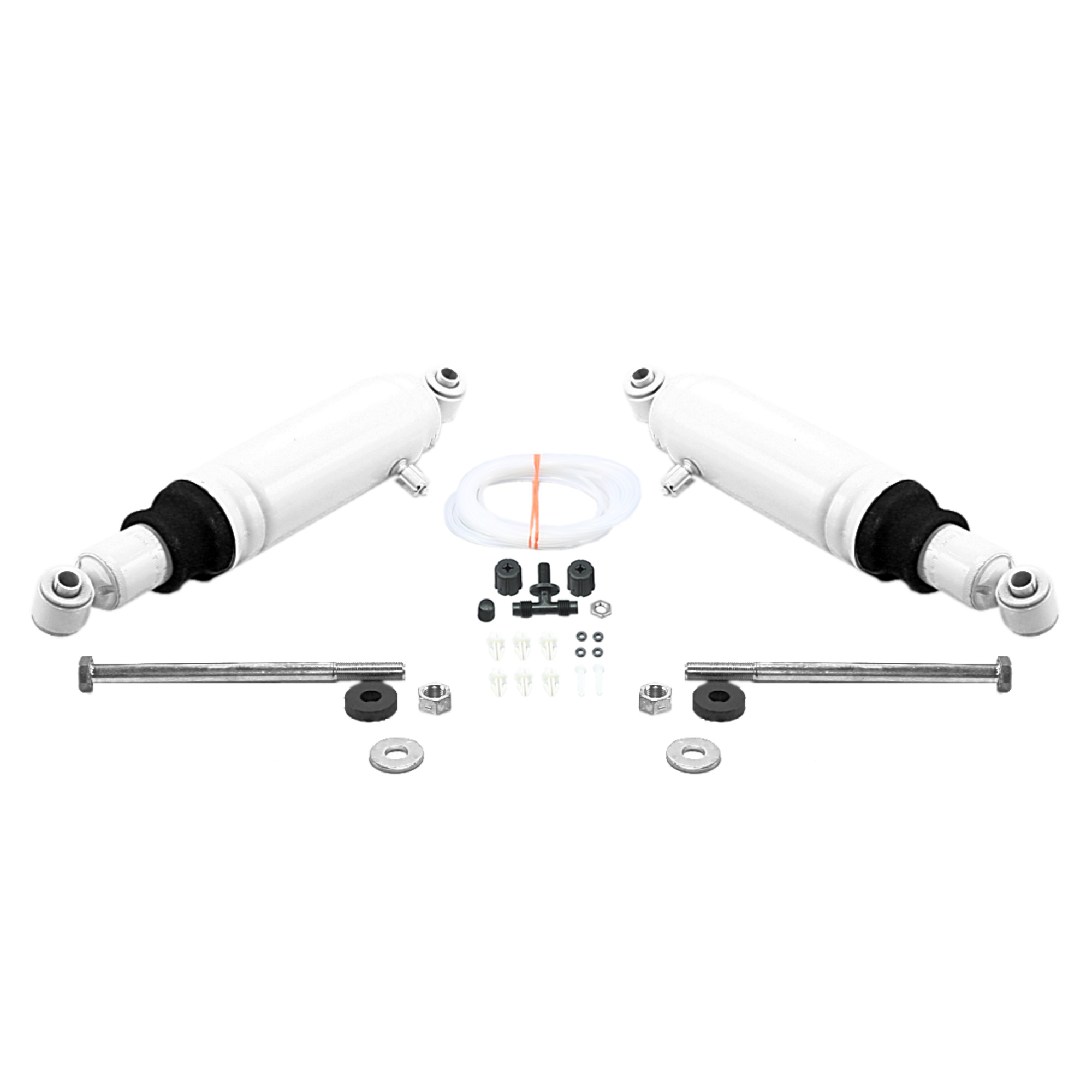

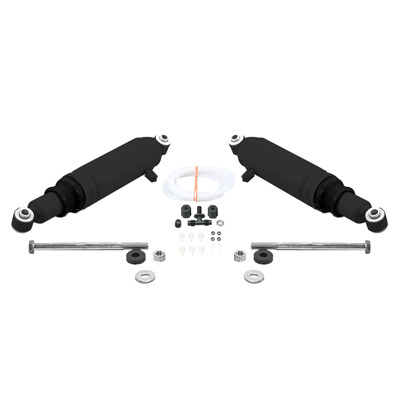

Max-Air Air Adjustable Rear Air Shock Absorber Pack of 2
Write a review
Part # MA817 | Line Code: MON
brandNameImage
brandNameImage
$180.99
$180.99
error
Not Fitted
store
Pickup
Select a store for availability
Select a Store
Product Details
expand_less
Upper Mounting Code LS40
Extended Bumper Stop No
Heavy Duty Supplier Yes
Extended Hydraulic Lockout No
Shock Absorber Rod End Measuring Point Center of Loop
Compressed Bumper Stop Yes
Hydraulic Lockout No
Lower Mounting Type Loop Bushing & Sleeve Mount - 1/2" Sleeve ID X 1.11/16" Sleeve OAL
Extended Length 530.2
Dust Shield Included Yes
Upper Mounting Type Loop Bushing & Sleeve Mount - 1/2" Sleeve ID X 1.11/16" Sleeve OAL
Internal Rebound Bumper No
Part Description Air Shock Absorber
Dust Shield Material Rubber
Shock Absorber Body End Measuring Point Center of Loop
Boot Included Yes
Compressed Length 12.75
Lower Mount Type Loop Bushing and Sleeve Mount - 1/2" Sleeve ID X 1.11/16" Sleeve OAL

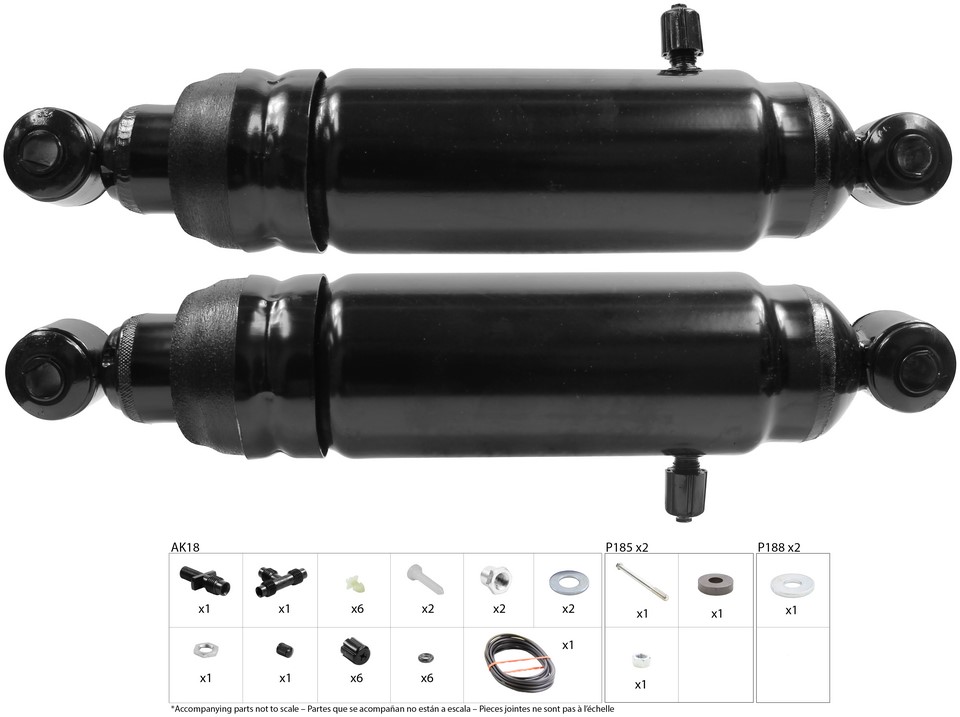

Parts Pack(s) P00185,P00188
Lower Mount Code LS40
Upper Mount Type Loop Bushing and Sleeve Mount - 1/2" Sleeve ID X 1.11/16" Sleeve OAL
Adjustable Rebound No
Travel Length 8.125
Lower Mounting Code LS40
Parts Pack P00185,P00188
Upper Mount Code LS40
Dust Shield Yes
Grade Type Premium
Part Terminology Air Shock Absorber
Features & Benefits
expand_more
Ideal for hauling, Monroe(R) Max-Air(R) shock absorbers can be inflated or deflated up to 150 PSI to maintain level height with additional weight up to 1,200 lbs. (capacity is limited by vehicle suspension, tires and transmission. See vehicle owner's manual.)
Application Summary
expand_more
1978-1995 Chevrolet G10 (Rear) (Qualifier: For Towing & Hauling, Use AK18 Air Line Kit To Replace Single Air Shock Fill System If Necessary, Use AK64 Air Line Kit To Add Separate Left and Right Air Shock Fill System If Desired); 1978-1995 Chevrolet G20 (Rear) (Qualifier: For Towing & Hauling, without Heavy Duty Suspension, Use AK18 Air Line Kit To Replace Single Air Shock Fill System If Necessary, Use AK64 Air Line Kit To Add Separate Left and Right Air Shock Fill System If Desired); 1978 GMC G15 (Rear) (Qualifier: For Towing & Hauling, Use AK18 Air Line Kit To Replace Single Air Shock Fill System If Necessary, Use AK64 Air Line Kit To Add Separate Left and Right Air Shock Fill System If Desired); 1979-1995 GMC G1500 (Rear) (Qualifier: For Towing & Hauling, Use AK18 Air Line Kit To Replace Single Air Shock Fill System If Necessary, Use AK64 Air Line Kit To Add Separate Left and Right Air Shock Fill System If Desired); 1978 GMC G25 (Rear) (Qualifier: For Towing & Hauling, without Heavy Duty Suspension, Use AK18 Air Line Kit To Replace Single Air Shock Fill System If Necessary, Use AK64 Air Line Kit To Add Separate Left and Right Air Shock Fill System If Desired); 1979-1995 GMC G2500 (Rear) (Qualifier: For Towing & Hauling, without Heavy Duty Suspension, Use AK18 Air Line Kit To Replace Single Air Shock Fill System If Necessary, Use AK64 Air Line Kit To Add Separate Left and Right Air Shock Fill System If Desired)
