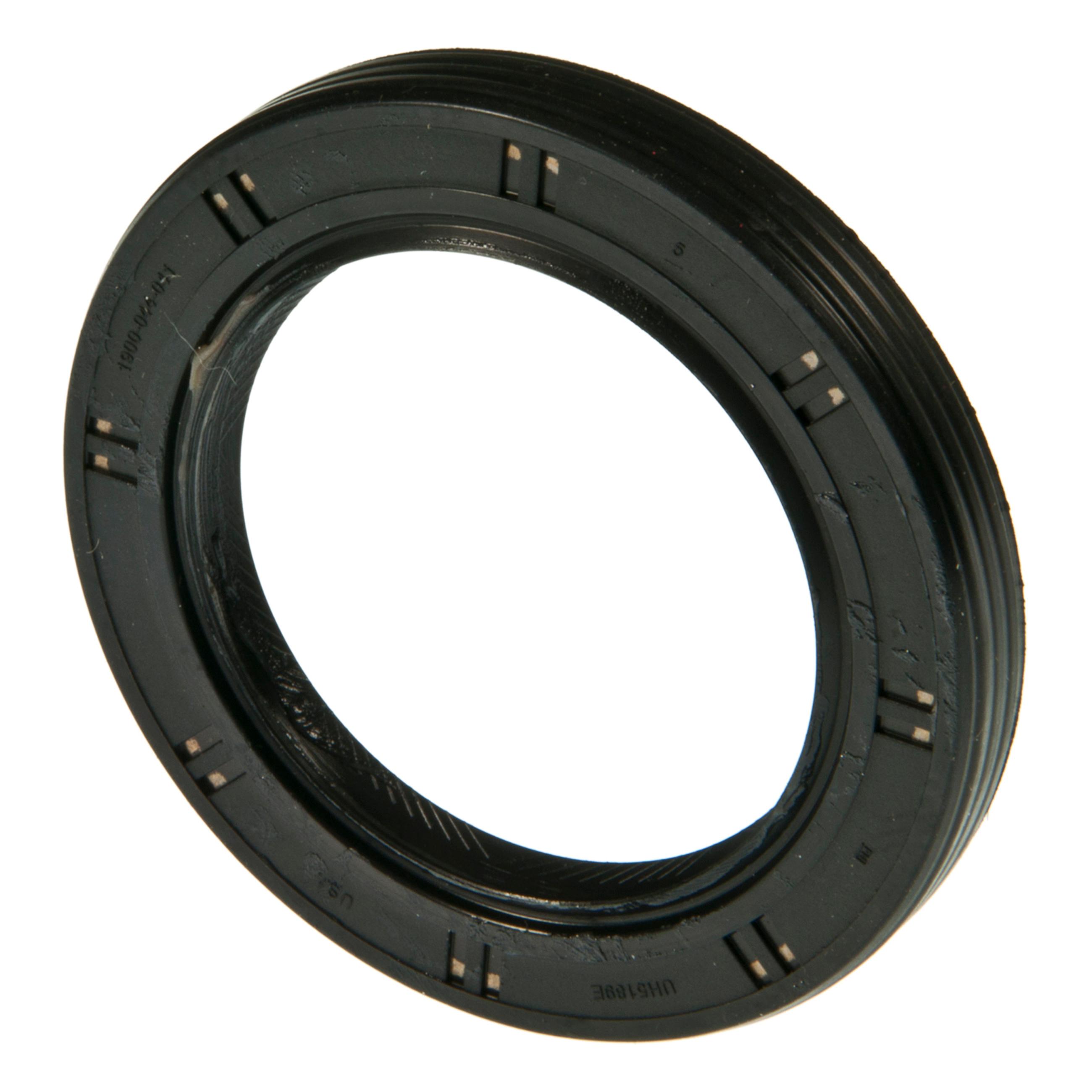

Transfer Case Input Shaft Seal
Part # 710658 | Line Code: NAT
brandNameImage
brandNameImage

$20.99
$20.99
error
Not Fitted

Product Details
expand_less
Seal Type Seal
Heavy Duty Supplier Yes
Unit of Dimension Inch
Housing Bore (MM) 69.850
Outside Diameter (Inch) 2.756
Shaft (MM) 47.900
Inside Diameter 1.886
Housing Bore (Inch) 2.750
Helix Type Bi-Directional Lip Design
WIDTH (MM) 8.500
Width 0.335
Part Description Oil Seal
Shaft Diameter 1.886
Material Polyacrylate
Width (inch) 0.335
Thickness 8.500
Series 710600
Type 32
Outside Diameter (MM) 70.000
Sealing Material Polyacrylate
Prop 65 Label (Yes/No) No
Outside Diameter 2.756
Grade Type Premium
Shaft (Inch) 1.886
Housing Bore 2.750
Part Terminology Transfer Case Input Shaft Seal

Features & Benefits
expand_more
National® has built a reputation as one of the most respected names in the industry. We have offered premium sealing solutions for more than 75 years. Our design team keeps pace with the industry and provides advanced solutions for today’s vehicles.

Application Summary
expand_more

2007-2014 Cadillac Escalade ESV (Drive: AWD); 2007-2013 Cadillac Escalade EXT (Drive: AWD); 2007-2014 Cadillac Escalade (Drive: AWD / Qualifier: with Borg-Warner 4485 Transfer Case, 1 Speed); 2007-2013 Chevrolet Avalanche (Drive: 4WD); 2009-2014 Chevrolet Silverado 1500 (Drive: 4WD); 2007-2014 Chevrolet Suburban 1500 (Drive: 4WD / Qualifier: with Borg-Warner 4485 Transfer Case, 1 Speed); 2008-2014 Chevrolet Tahoe (Drive: 4WD / Qualifier: with Borg-Warner 4485 Transfer Case, 1 Speed); 2009-2014 GMC Sierra 1500 (Drive: 4WD, AWD / Qualifier: with Borg-Warner 4485 Transfer Case, 1 Speed); 2007-2014 GMC Yukon (Drive: AWD, 4WD / Qualifier: with Borg-Warner 4485 Transfer Case, 1 Speed); 2007-2013 GMC Yukon XL 1500 (Drive: 4WD, AWD / Qualifier: with Borg-Warner 4485 Transfer Case, 1 Speed); 2003-2009 Hummer H2 (Drive: 4WD / Qualifier: with Borg-Warner 4484 Transfer Case, 2 Speed)
